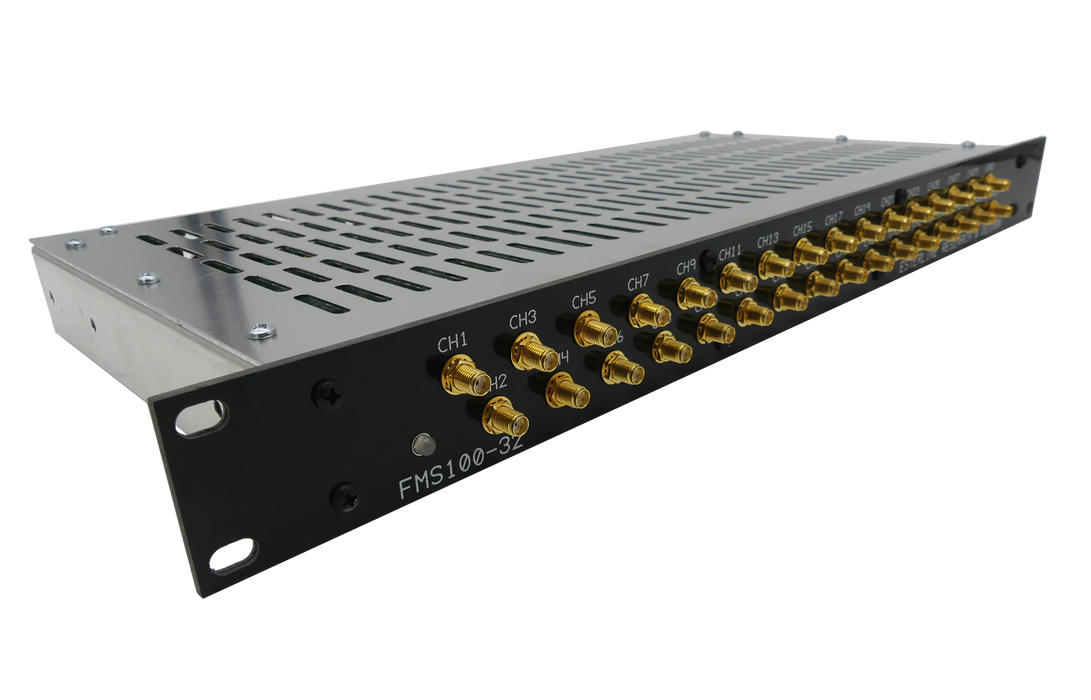

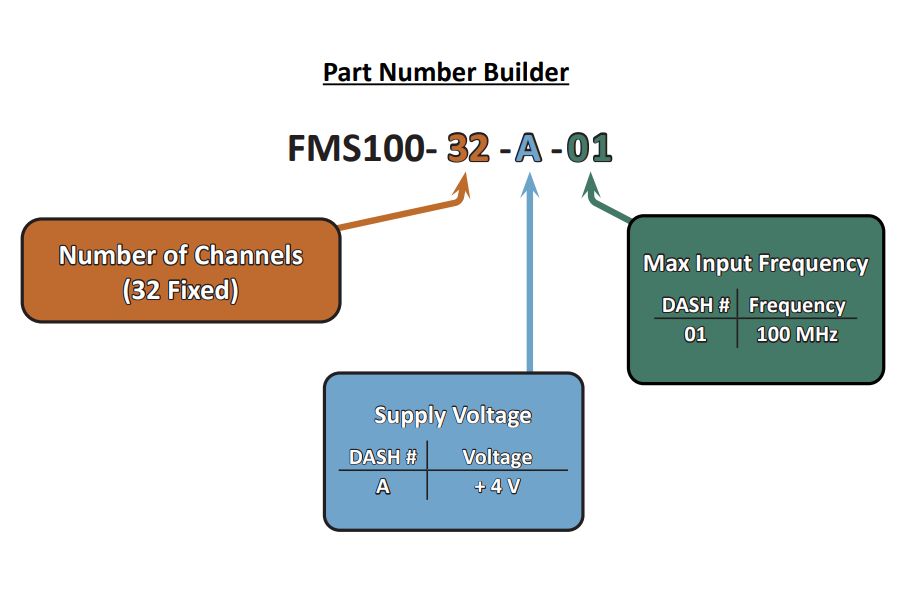

32-Channel Rackmount Frequency Measurement System

Measure up to 32 signals simultaneously with a true parallel, rack-mounted frequency measurement system. Each channel features a dedicated counter, eliminating multiplexing errors and ensuring accurate, real-time results across a wide frequency range from kHz to 100 MHz.

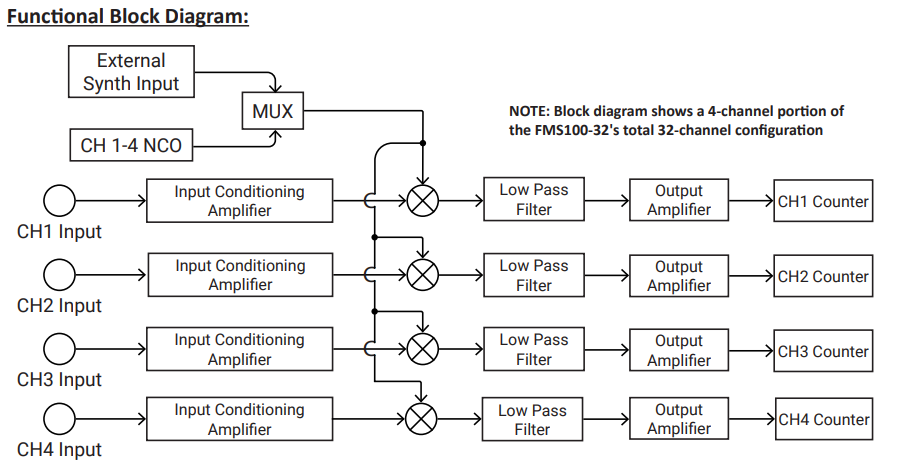

Built on a high-resolution heterodyne architecture, the system delivers ppb to ppt-level performance for both short-term measurements and long-term stability analysis. With flexible gate times, scalable expansion, and a compact 1U design, it is optimized for production testing, validation, and precision frequency characterization.

Key Features

• 32 Independent Channels
  Dedicated counter per channel enables true parallel measurement with no switching delays
• Simultaneous Acquisition
  Capture all inputs in real time to increase test speed and throughput
• No RF Switching Required
  Eliminates switching errors and improves measurement repeatability
• High Channel Isolation
  Minimizes injection locking and cross-channel interference
• Wide Frequency Coverage
  Measures from low kHz up to 100 MHz using direct input or down-conversion
• High Measurement Resolution
  Delivers ppb to ppt-level precision using heterodyne techniques
• Flexible Gate Times
  Adjustable from 10 ms to 24 hours for dynamic or long-duration measurements
• Zero-Dead-Time (Optional)
  Continuous acquisition with no gaps in measurement data
• Integrated NCO (0.5–100 MHz)
  Supports internal mixing for multi-frequency test scenarios
• High Throughput Performance
  Up to 1600 measurements per second via high-speed communication
• Onboard Data Buffering
  Stores up to 4096 readings per system for efficient data handling
• External 10 MHz Reference
  Enables synchronization with high-stability lab references
• ADEV & Stability Analysis Ready
  Supports Allan deviation and long-term frequency characterization
• Scalable System Architecture
  Daisy-chain multiple units to support large channel counts

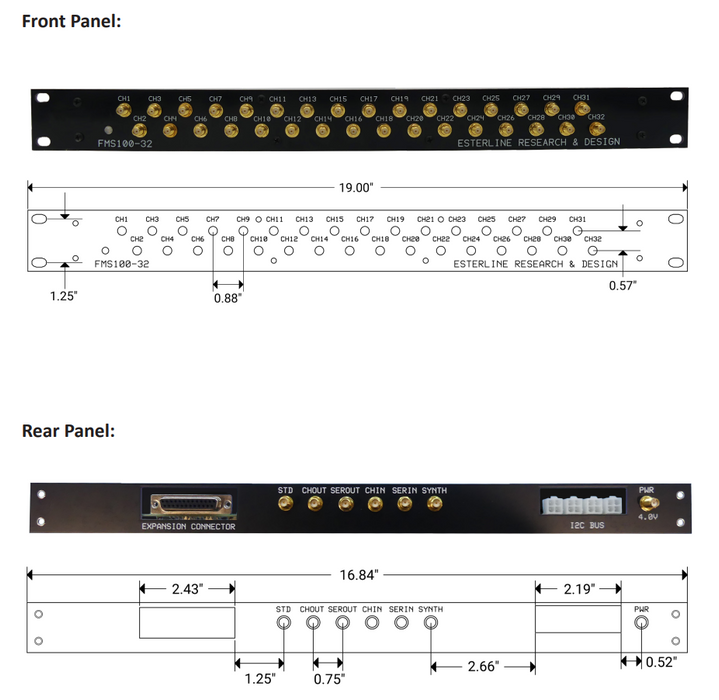

• Compact 1U Rackmount Form Factor
  Maximizes channel density while minimizing rack space
• PC-Controlled Operation
  Integrates easily into automated test environments

Applications

• Production & Manufacturing Test
• RF Test & Measurement
• Signal Processing Validation
• Sensing & Instrumentation Systems
