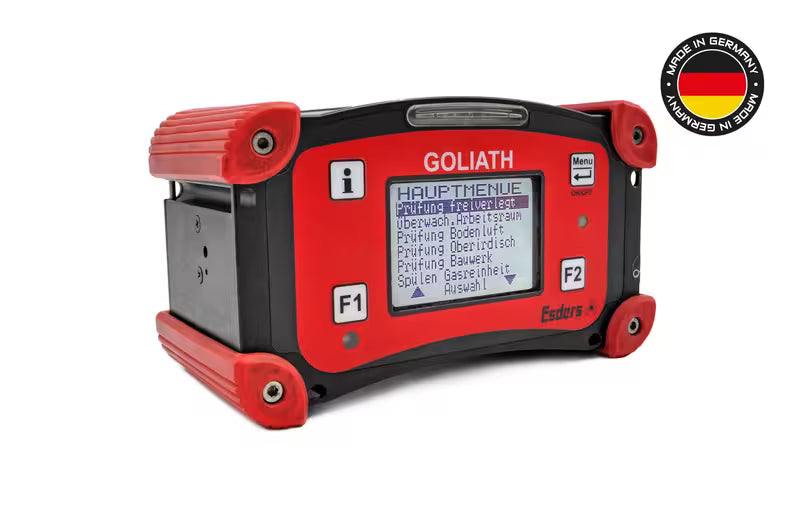

Biogas & Landfill Gas Analyzer for Methane & CO₂ Monitoring
The GOLIATH Biogas Analyzer is a professional explosion-proof gas analyzer designed for biogas plants, landfill gas systems, wastewater treatment facilities, renewable energy sites, and methane emissions monitoring. Engineered for fast, accurate gas composition analysis and leak detection, it measures methane and carbon dioxide using high-performance infrared sensors with response times under 10 seconds.
Designed for demanding field environments, the GOLIATH Biogas Analyzer also performs LDAR (Leak Detection & Repair) inspections on biogas systems, helping operators identify methane leaks, improve plant efficiency, and support environmental compliance. Optional oxygen and hydrogen sulfide sensors expand its capabilities for complete biogas monitoring and safety inspections.
Ideal Applications
- Biogas plants
- Landfill gas monitoring
- Wastewater treatment facilities
- Renewable natural gas (RNG)
- Anaerobic digesters
- Methane emissions monitoring
- LDAR inspections
- Environmental compliance
Key Features
- Fast methane and carbon dioxide analysis
- Infrared sensors with response time under 10 seconds
- Methane leak detection (LDAR)
- Optional oxygen sensor
- Optional hydrogen sulfide sensor up to 2,000 ppm
- Integrated diaphragm sampling pump
- Explosion-proof ATEX design
- Rechargeable NiMH battery
- Backlit LCD display
- USB data transfer and reporting
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detectable Gases | Methane (CH₄), Carbon Dioxide (CO₂), Optional O₂ & H₂S |
| Methane Range | 0–100% Vol. CH₄ |
| Carbon Dioxide Range | 0–100% Vol. CO₂ |
| Oxygen (Optional) | 0–25% Vol. O₂ |
| Hydrogen Sulfide (Optional) | 0–100 ppm or 0–2,000 ppm H₂S |
| Sensor Type | Infrared (CH₄ & CO₂) |
| Response Time | <10 seconds |
| Display | Backlit LCD |
| Battery | Rechargeable NiMH |
| Battery Life | 8–12+ hours |
| Protection Rating | Explosion-Proof (ATEX) |
| Operating Temperature | 14°F–104°F (-10°C to 40°C) |
| Dimensions | 7.9 × 3.9 × 3.4 in (200 × 100 × 87 mm) |
| Weight | 2.6 lb (1.2 kg) |
| Connectivity | USB (via charging cradle) |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU | MBT-201057 |
