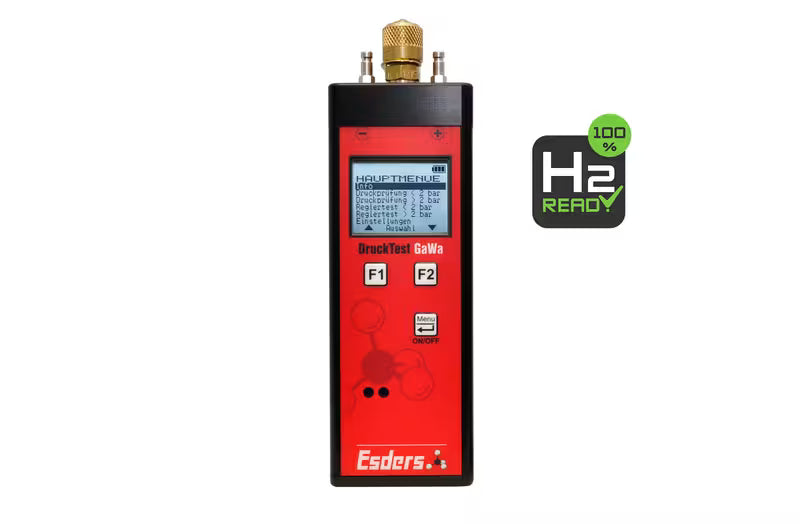

Digital Gas & Water Pressure Gauge for Pipeline Testing
The DruckTest GaWa EX is a professional digital gas and water pressure gauge designed for utilities, pipeline contractors, HVAC professionals, and industrial maintenance teams. Featuring dual pressure sensors and multiple measuring ranges, it performs accurate pressure, differential pressure, leak, and load testing on gas and water systems while meeting demanding utility and pipeline standards.
Built inside a rugged aluminum housing, the DruckTest GaWa EX delivers high-accuracy measurements up to 1,450 psi (100 bar). Its explosion-proof ATEX certification, backlit LCD display, integrated data logging, and compatibility with Esders software make it an ideal instrument for pressure testing, commissioning, preventive maintenance, and troubleshooting.
Ideal Applications
- Gas pipeline pressure testing
- Water pipeline testing
- Differential pressure measurement
- Utility maintenance
- Pipeline commissioning
- HVAC pressure testing
- Leak testing
- Industrial maintenance
Key Features
- Digital pressure gauge with dual pressure sensors
- Pressure measurement up to 1,450 psi (100 bar)
- Differential pressure measurement
- Minimum, maximum, start/end pressure recording
- Load and leak testing
- ATEX explosion-proof certification
- Rugged aluminum housing
- Backlit LCD display
- Graphical data reporting
- Compatible with Esders PC-1 software
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Pressure Ranges | 0–2 bar (0–29 psi) and 0–100 bar (0–1,450 psi) |
| Low Pressure Resolution | 0.1 mbar / 1 mbar |
| High Pressure Resolution | 2–5 mbar |
| Accuracy | ±0.5% FS (low pressure), ±0.1% FS (10 & 25 bar), ±0.5% FS (50 & 100 bar) |
| Display | 128 × 64 Backlit LCD |
| Battery Life | Up to 60 hours (AA batteries) or 48 hours (NiMH battery pack) |
| Power | 4 × AA batteries or rechargeable NiMH battery pack |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Protection | ATEX Explosion-Proof |
| Dimensions | 7.5 × 2.3 × 1.3 in (191 × 58 × 34 mm) |
| Weight | 1.0 lb (455 g) |
| Country of Origin | Germany |
| HS Code | 9026.20 |
| SKU | MBT-271272 |
