Refrigerant Leak Detector

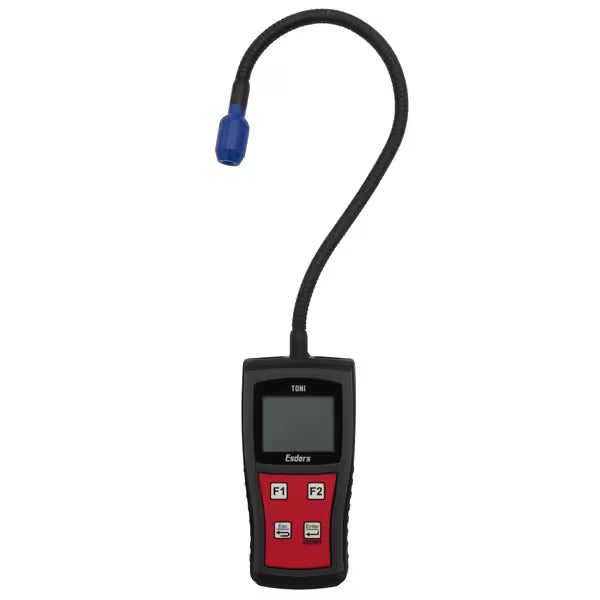

The TONI GasTest R Refrigerant Leak Detector is a professional handheld instrument designed for fast, accurate detection of refrigerant leaks in HVAC, refrigeration, and heat pump systems. Detecting all common refrigerants in accordance with EN 14624, it quickly locates leaks in systems using R290, R32, R134a, R1234yf, and many other refrigerants.
Featuring a 34.5 cm flexible gooseneck, high-sensitivity diffusion sensor, and up to 17 hours of battery life, the TONI GasTest R makes it easy to inspect hard-to-reach components during installation, maintenance, service, and transport inspections. Digital reporting through Esders Connect streamlines documentation and compliance.
Ideal Applications
- Heat pump installation and service
- HVAC system maintenance
- Refrigeration equipment
- Refrigerant leak inspections

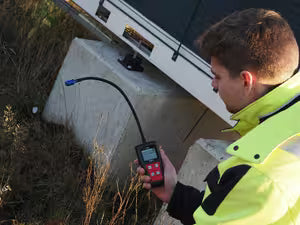

- Heat pump transport monitoring
- Commercial and residential HVAC service
Key Features
- Detects common refrigerants including R290, R32, R134a, R1234yf
- EN 14624 compliant
- High-sensitivity diffusion sensor
- 34.5 cm flexible gooseneck
- Audible, visual, and vibration alarms
- LCD backlit display
- Up to 17 hours battery life
- USB-C rechargeable lithium-ion battery
- IP64-rated housing
- Digital reporting with Esders Connect
- Magnetic mounting for transport monitoring
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detectable Refrigerants | R290, R32, R134a, R1234yf & more |
| Standard | EN 14624 |
| Sensor | High-sensitivity diffusion sensor |
| Gooseneck Length | 345 mm (13.6 in) |
| Battery Life | Up to 17 hours |
| Display | 128 × 64 Backlit LCD |
| Alarms | Audible, Visual & Vibration |
| Protection Rating | IP64 |
| Charging | USB-C |
| Operating Temperature | 0°C to 60°C |
| Weight | Approx. 270 g (0.6 lb) |
