USB Programmable Attenuator | 100 MHz–18 GHz, 63 dB, 0.5 dB Step
Model: AT10018A-60-U-MBT
The AT10018A-60-U-MBT USB Programmable Attenuator provides precise, programmable RF attenuation across a wide 100 MHz to 18 GHz frequency range. With 0 to 63 dB attenuation and fine 0.5 dB steps, it is well suited for automated RF testing, signal-level control, laboratory setups, production test systems, and general RF development.
Built-in insertion-loss compensation helps the actual attenuation closely match the selected value. The unit features a USB Type-C interface with both GUI and API control, making it easy to integrate into manual or automated test environments.

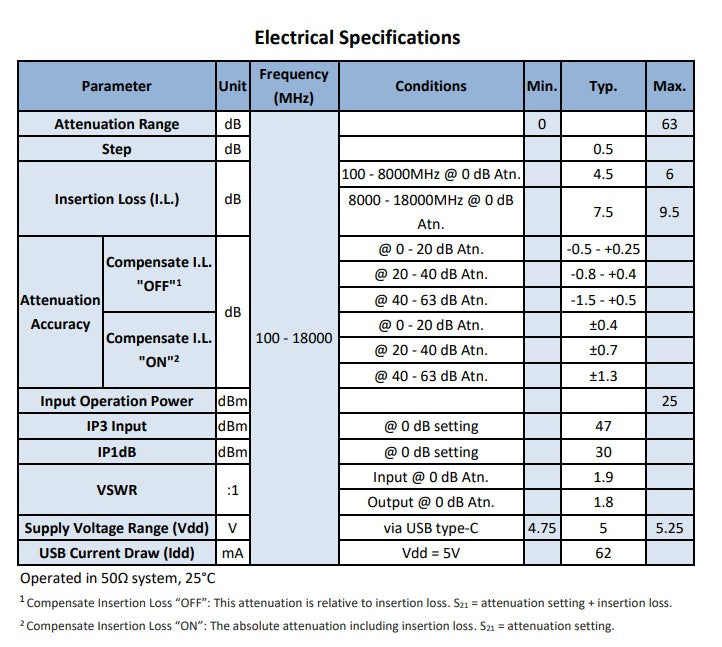

Key Features
- 100 MHz to 18 GHz frequency range
- 0 to 63 dB attenuation range
- 0.5 dB step resolution
- USB Type-C interface
- GUI and API control
- Insertion-loss compensation
- Up to 25 dBm RF operating input power
- Typical 47 dBm input IP3
- 30 dBm IP1dB
- SMA female RF connectors
- 50 Ω system
- RoHS compliant
