USB Programmable Attenuator | 200 MHz–6 GHz, 31.75 dB, 0.25 dB Step
Model: AT10006B-30-U-MBT

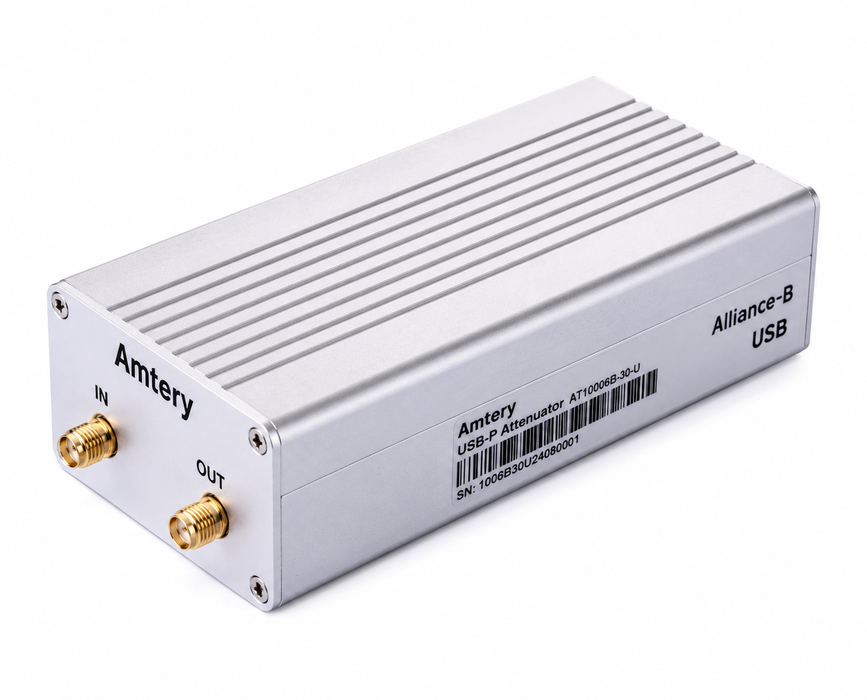

The AT10006B-30-U USB Programmable Attenuator provides precise, repeatable RF attenuation from 200 MHz to 6 GHz in a compact USB-controlled design. With an attenuation range of 0 to 31.75 dB and fine 0.25 dB steps, it is well suited for automated RF testing, signal-level control, laboratory setups, production test systems, and general RF development.

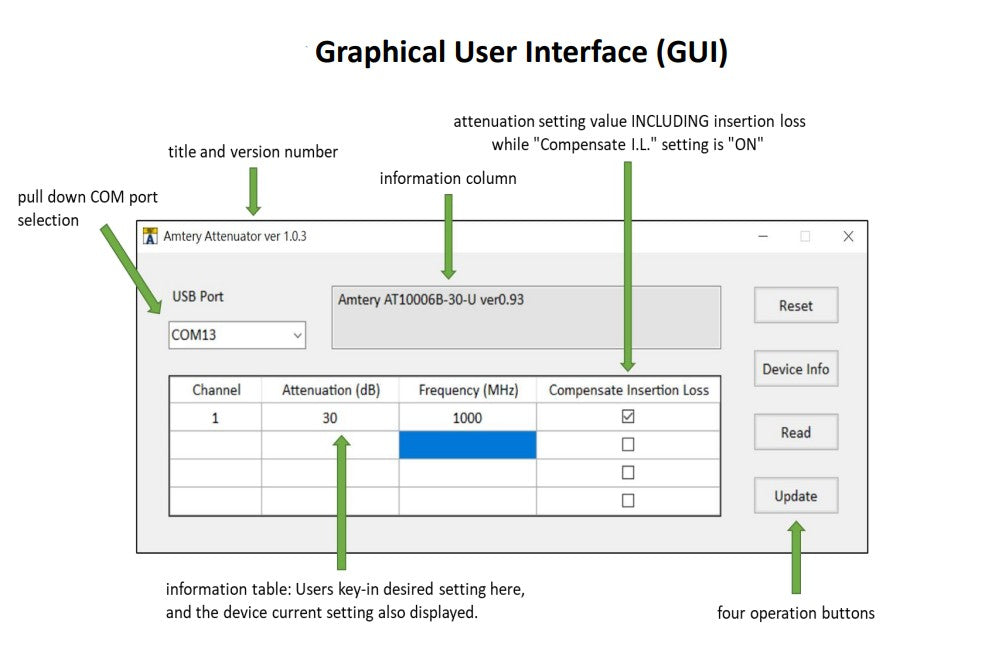

Its built-in insertion-loss compensation can automatically account for insertion loss at the selected frequency, helping the actual attenuation closely match the requested value. The attenuator is controlled and powered through USB and includes Amtery GUI software support for convenient PC-based operation.

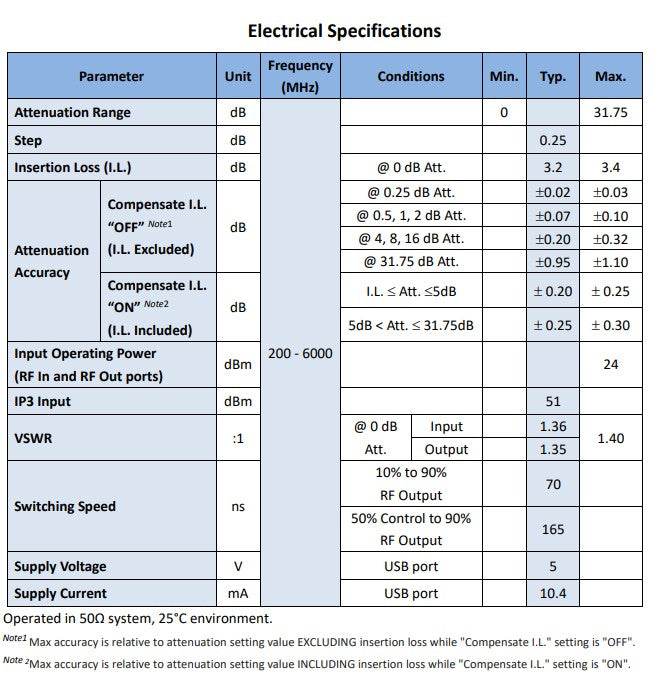

Key Features
- 200 MHz to 6 GHz frequency range
- 0 to 31.75 dB attenuation
- 0.25 dB step resolution
- USB programmable control
- Insertion-loss compensation
- Up to 24 dBm RF operating input power
- Typical 51 dBm input IP3
- Fast switching performance
- SMA female RF connectors
- Compact, RoHS-compliant design
