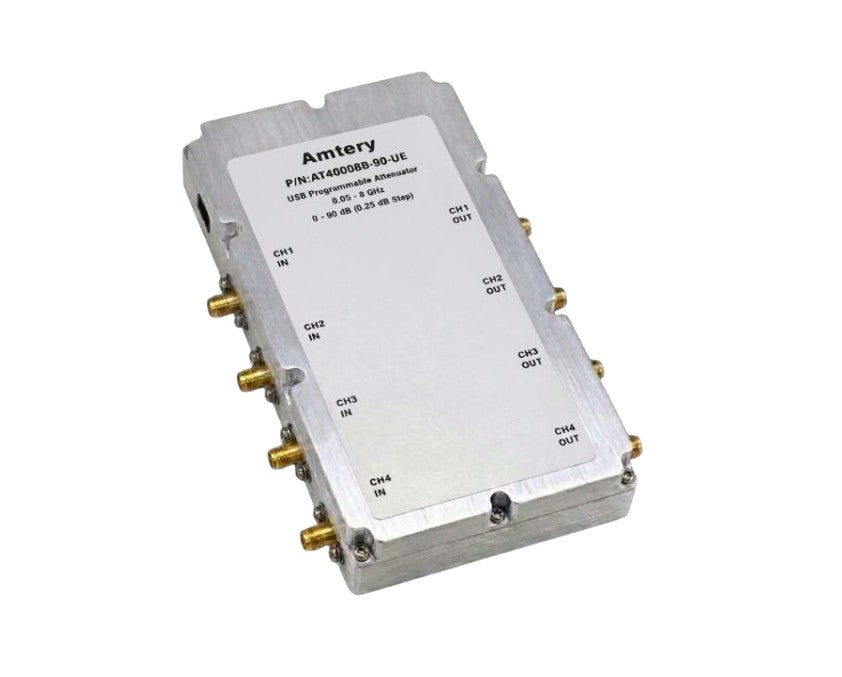

4-Channel Programmable Attenuator | 50 MHz–8 GHz, 90 dB, 0.25 dB Step
Model: AT40008B-90-UE-MBT
The AT40008B-90-UE 4-Channel Programmable Attenuator provides precise, independent RF attenuation across 50 MHz to 8 GHz. With a wide 0 to 90 dB attenuation range and fine 0.25 dB steps, it is well suited for multi-channel RF testing, automated test systems, signal-level control, production testing, and laboratory applications.
Built-in insertion-loss compensation helps improve attenuation accuracy, while USB Type-C and Ethernet interfaces provide flexible remote control. GUI and API support make the unit easy to integrate into both manual and automated RF test environments.

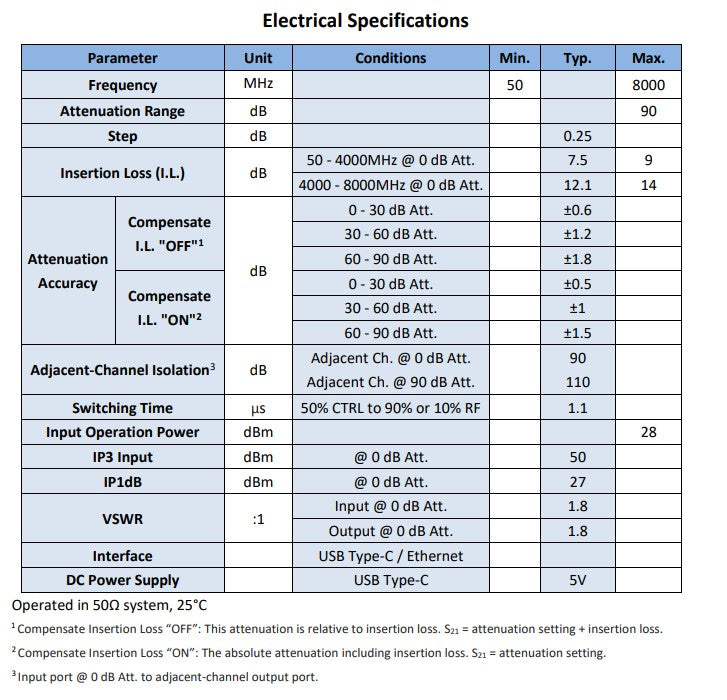

Key Features
- 4 independent RF channels
- 50 MHz to 8 GHz frequency range
- 0 to 90 dB attenuation range
- 0.25 dB step resolution
- USB Type-C and Ethernet control
- GUI and API control
- Insertion-loss compensation
- Typical 1.1 µs switching time
- Up to 28 dBm RF operating input power
- Typical 50 dBm input IP3
- Up to 110 dB adjacent-channel isolation
- SMA female RF connectors
- 50 Ω system
- RoHS compliant
