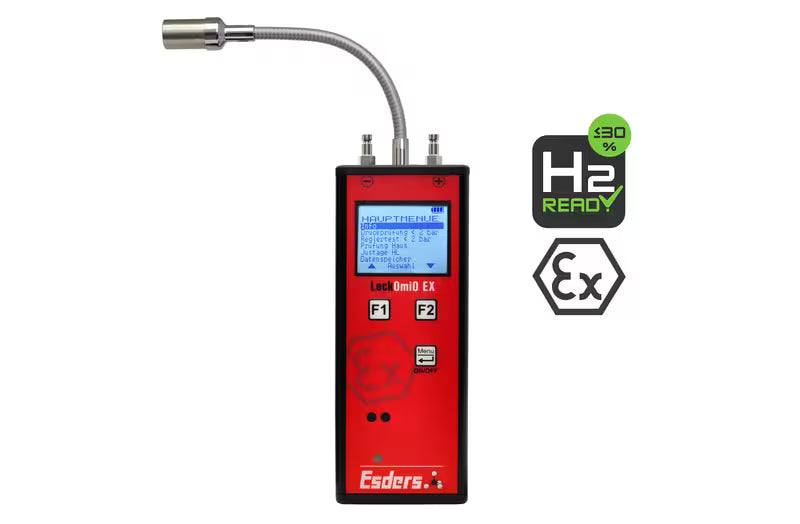

ATEX Gas Leak Detector & Digital Pressure Gauge for Natural Gas
The LeckOmiO EX is a professional ATEX-certified gas leak detector and digital pressure gauge designed for natural gas utilities, HVAC contractors, plumbers, and pipeline technicians. Combining high-sensitivity methane leak detection with precision pressure measurement, it allows technicians to quickly locate leaks, perform load and leak tests, and verify gas system integrity with one compact handheld instrument.
Featuring a flexible gooseneck sensor, vibration alarm, backlit LCD display, and rugged aluminum housing, the LeckOmiO EX is ideal for residential, commercial, and industrial gas inspections. With pressure measurement up to 29 psi (2 bar), methane detection to 10,000 ppm, and long battery life, it delivers reliable performance for daily field service and regulatory compliance.
Ideal Applications
- Natural gas leak detection
- Residential gas inspections
- Commercial gas systems
- Utility maintenance
- Pipeline commissioning
- HVAC gas service
- Pressure testing
- LDAR (Leak Detection & Repair)
Key Features
- ATEX-certified gas leak detector and pressure gauge
- Methane detection up to 10,000 ppm
- Pressure measurement up to 29 psi (2 bar)
- Flexible gooseneck gas sensor
- Audible, visual, and vibration alarms
- Load and leak testing
- Minimum, maximum, start, and end pressure recording
- Rugged aluminum housing
- USB data reporting with Esders PC-1 software
- Up to 60 hours battery life in pressure mode
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detection Gas | Methane (CH₄) |
| Gas Measurement Range | 0–10,000 ppm CH₄ |
| Pressure Range | 0–29 psi (0–2 bar) |
| Low Pressure Resolution | 0.1 mbar / 1 mbar |
| Pressure Accuracy | ±0.5% Full Scale |
| Display | 128 × 64 Backlit LCD |
| Battery Life | Up to 100 hours (pressure mode with AA batteries) / 20 hours (gas detection) |
| Alarm | Audible, Visual & Vibration |
| Protection | ATEX Explosion-Proof |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 6.5 × 2.3 × 1.3 in (165 × 58 × 34 mm) (excluding gooseneck) |
| Gooseneck Length | 6.4 in (162 mm) |
| Weight | 1.0 lb (450 g) |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU | MBT-271250 |
