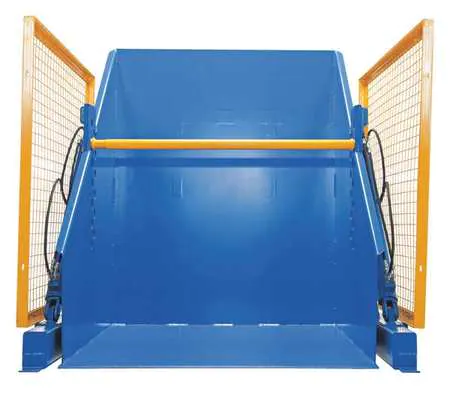

Box Dumper, 48 in. H, 4000 lb., Steel, 2 HP

by Vestil
$9,673.88

Box Dumper, Load Capacity 4,000 lb, Voltage 460 V, 3 Phase, Motor HP 2.0, Control Type Hand Control Pendant, Chute Length 52 in, Chute Width 50 in, Dump Height 48 in, Level Height 65 in, Rotation Height 111 in, Lowered Height 3/8 in, Max. Rotation Angle 135 Degrees , Hold Down Range 24 in to 36 in, Hold Down Increments 2 in, Overall Length 66 in, Overall Width 68 in, Control Pendant Cord Length 8 ft, Max. Chute Reach 10 in, Frame Material Steel, Chute Material Steel

  • Item: Hydraulic Box Dumper
  • Finish: Frame, Chute: Liquid Paint; Guards, Hold Down Bar: Powder Coated
  • Load Capacity: 4,000 lb
  • Overall Height: Level: 65"; Rotated: 129-1/2"
  • Overall Length: 68-1/2"
  • Overall Width: 69"
  • Dump Angle: 45 Degrees
  • Frame Material: Steel
  • Max. Rotation Angle: 135 Degrees
  • Motor HP: 2.0
  • Rotation Height: 111 in
  • Voltage: 460 V
  • Phase: 3
  • Dump Height: 48 in
  • Control Type: Hand Control Pendant
  • Control Pendant Cord Length: 8 ft
  • Lowered Height: 3/8 in
  • Chute Length: 52 in
  • Level Height: 65 in
  • Max. Chute Reach: 10 in
  • Hold Down Increments: 2 in
  • Chute Width: 50 in
  • Chute Material: Steel
  • Hold Down Range: 24 in to 36 in
  • Container Material - Hoppers and Cube Trucks: Heavy Duty Welded Steel
  • Color - Hoppers and Cube Trucks: Frame, Chute: Blue; Guards, Hold Down Bar: Yellow
  • Load Capacity - Hoppers and Cube Trucks: 4000 lb.
HBD-4-48
