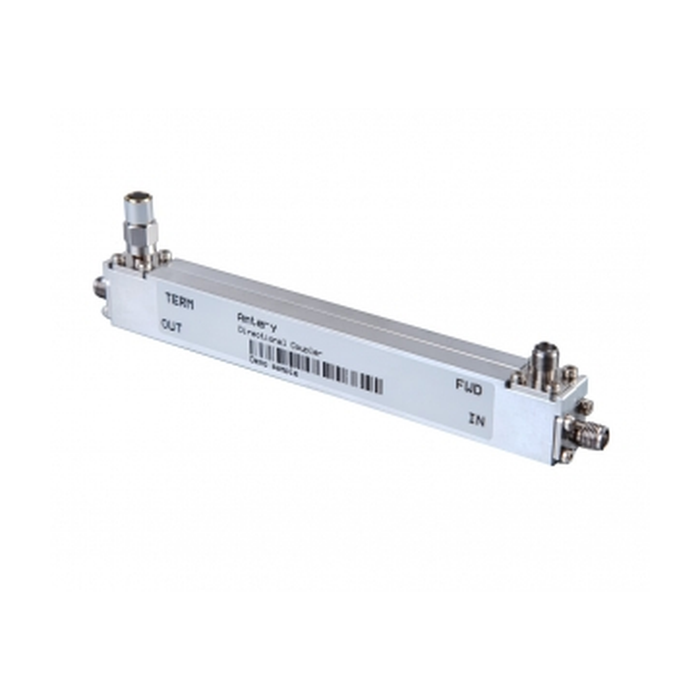

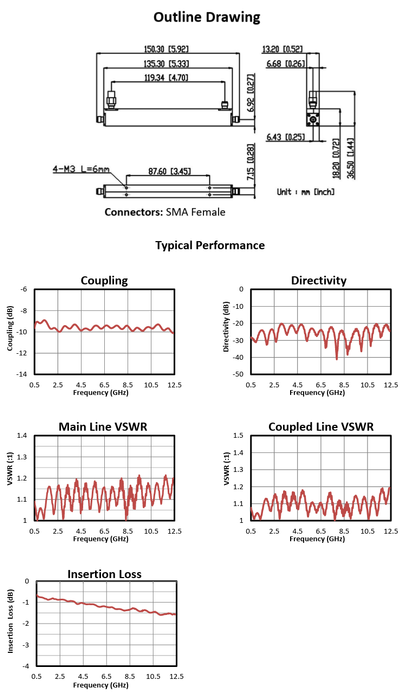

0.5–12.4 GHz 10 dB | Directional Coupler | CP10012A-10-MBT
The CP10012A-10-MBT is a 0.5–12.4 GHz directional coupler with 10 dB nominal coupling and 30 W average power handling for RF signal sampling, power monitoring, amplifier testing, and measurement applications.
Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 0.5–12.4 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 0.5–12.4 GHz | — | ±0.7 dB | ±1.1 dB |
| Directivity | 0.5–6 GHz | 19 dB | 21 dB | — |
| Directivity | 6–12.4 GHz | 17 dB | 20 dB | — |
| Main Line VSWR | 0.5–12.4 GHz | — | 1.20:1 | 1.30:1 |
| Coupled Line VSWR | 0.5–12.4 GHz | — | 1.20:1 | 1.35:1 |
| Insertion Loss (Including Coupling Loss) | 0.5–12.4 GHz | — | 1.6 dB | 2.0 dB |
| Average Power Handling | 0.5–12.4 GHz | — | — | 30 W |
Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, communications equipment, wireless testing, and RF laboratory applications.
