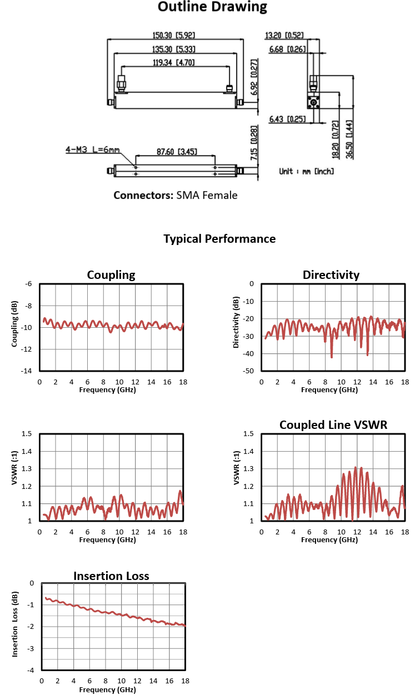

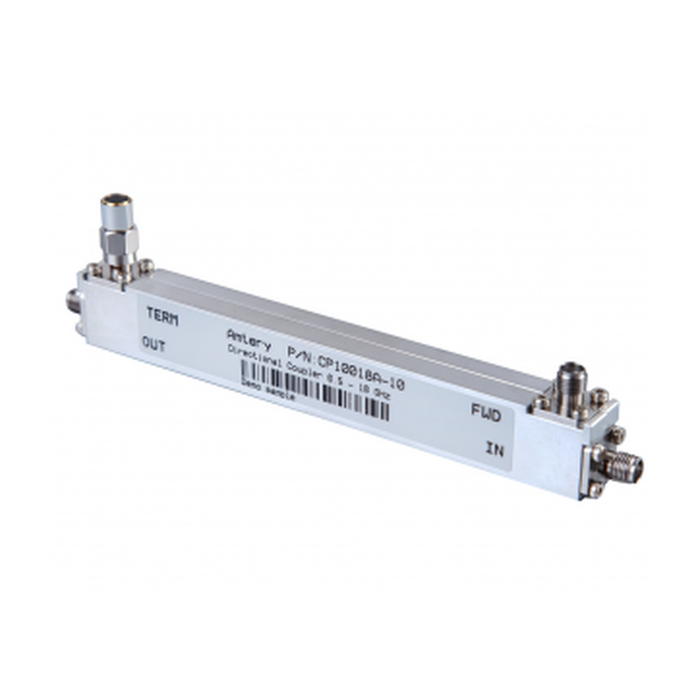

0.5–18 GHz 10 dB | Directional Coupler | CP10018A-10-MBT
The CP10018A-10-MBT is a 0.5–18 GHz directional coupler with 10 dB nominal coupling for RF signal sampling, power monitoring, amplifier testing, and measurement applications.
Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 0.5–18 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 0.5–18 GHz | — | ±0.7 dB | ±1.1 dB |
| Directivity | 0.5–18 GHz | 16 dB | 21 dB | — |
| Main Line VSWR | 0.5–8 GHz | — | 1.15:1 | 1.25:1 |
| Main Line VSWR | 8–18 GHz | — | 1.15:1 | 1.35:1 |
| Coupled Line VSWR | 0.5–8 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 8–18 GHz | — | 1.30:1 | 1.35:1 |
| Insertion Loss (Including Coupling Loss) | 0.5–18 GHz | — | 2.0 dB | 2.4 dB |
| Average Power Handling | 0.5–18 GHz | — | — | 20 W |
Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, communications equipment, wireless testing, and RF laboratory applications.
