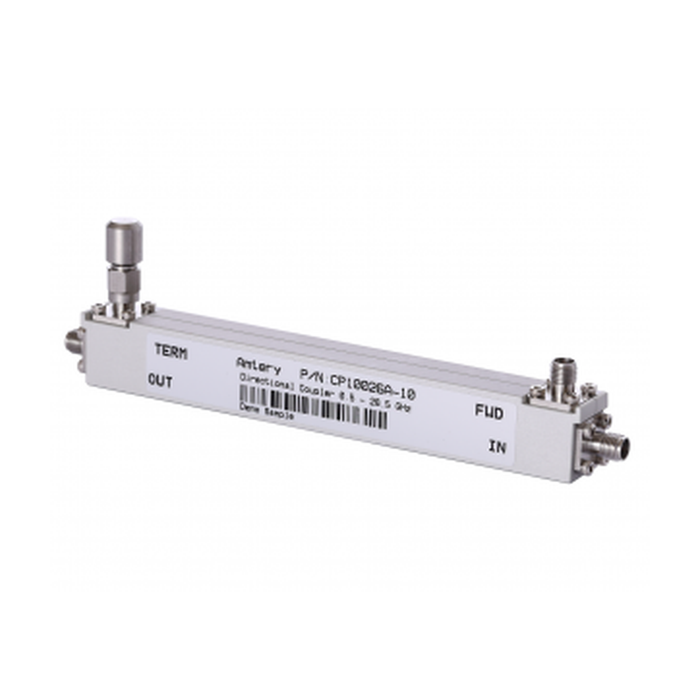

0.5–26.5 GHz 10 dB | Directional Coupler | CP10026A-10-MBT
The CP10026A-10-MBT is a 0.5–26.5 GHz directional coupler with 10 dB nominal coupling for wideband RF signal sampling, forward power monitoring, amplifier testing, and microwave/mmWave measurement applications.

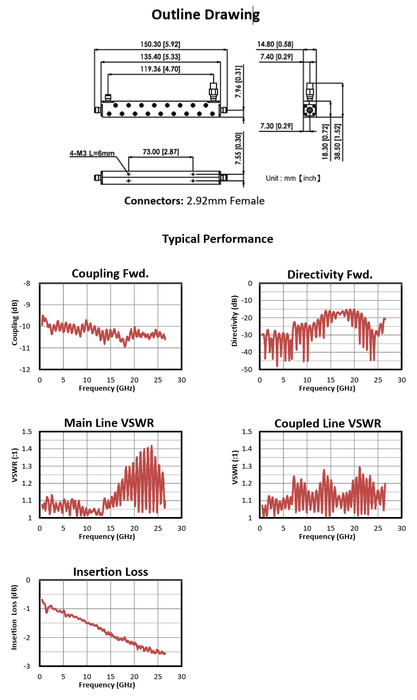

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 0.5–26.5 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 0.5–26.5 GHz | — | ±0.73 dB | ±1.0 dB |
| Directivity | 0.5–8 GHz | 18 dB | 23 dB | — |
| Directivity | 8–26.5 GHz | 13 dB | 15 dB | — |
| Insertion Loss | 0.5–26.5 GHz | — | 2.6 dB | 3.0 dB |
| Main Line VSWR | 0.5–8 GHz | — | 1.13:1 | 1.28:1 |
| Main Line VSWR | 8–26.5 GHz | — | 1.42:1 | 1.45:1 |
| Coupled Line VSWR | 0.5–8 GHz | — | 1.25:1 | 1.28:1 |
| Coupled Line VSWR | 8–26.5 GHz | — | 1.30:1 | 1.45:1 |
| Average Power Handling | 0.5–26.5 GHz | — | — | 20 W |
Connector: SMA Female
Compliance: RoHS Compliant
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, microwave communications, semiconductor test, wireless systems, and RF/mmWave laboratory applications.
