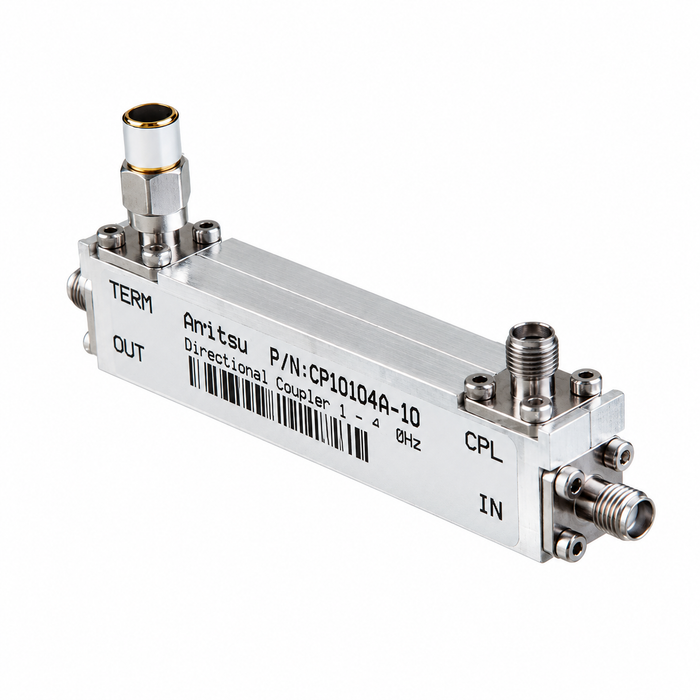

1–4 GHz 10 dB | Directional Coupler | CP10104A-10-MBT
The CP10104A-10-MBT is a 1–4 GHz directional coupler with 10 dB nominal coupling for RF signal sampling, power monitoring, and measurement.
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 1–4 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 1–4 GHz | — | ±0.6 dB | ±0.9 dB |
| Directivity | 1–4 GHz | 19 dB | 21 dB | — |
| Main Line VSWR | 1–4 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 1–4 GHz | — | 1.20:1 | 1.25:1 |
| Insertion Loss (Including Coupling Loss) | 1–4 GHz | — | 0.9 dB | 1.3 dB |
| Average Power Handling | 1–4 GHz | — | — | 20 W |

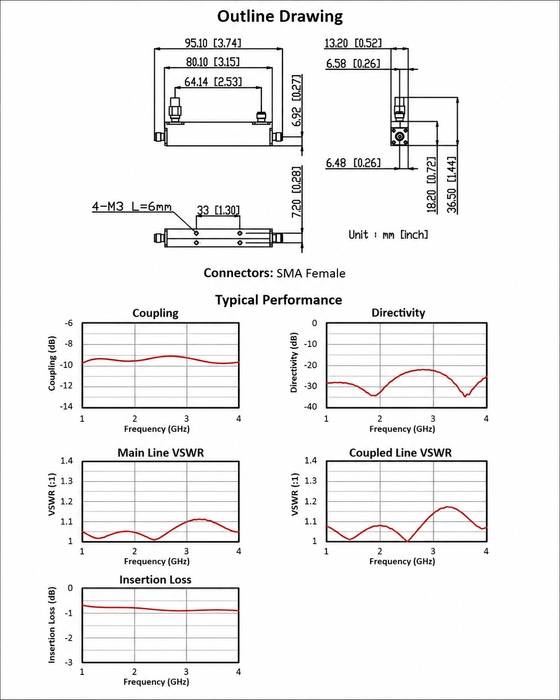

Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
