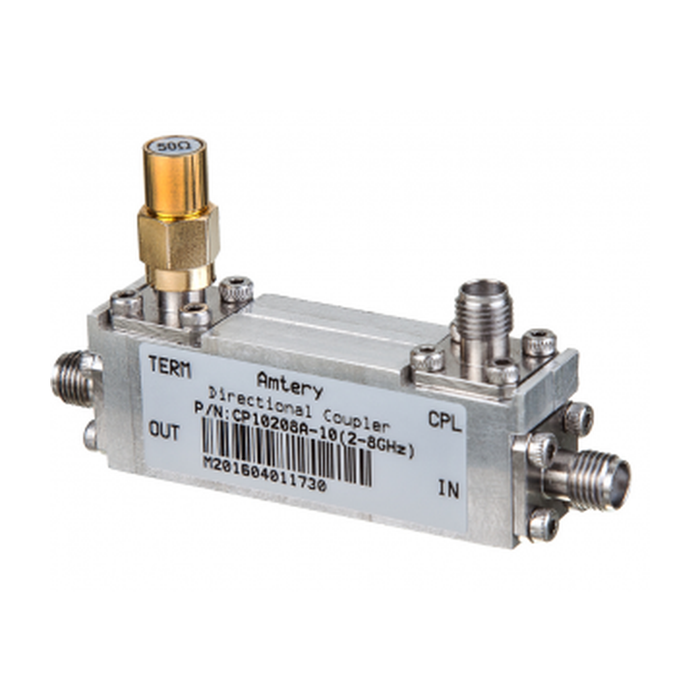

2–8 GHz 10 dB Directional Coupler | CP10208A-10-MBT
The CP10208A-10-MBT is a 2–8 GHz directional coupler with 10 dB nominal coupling for RF signal sampling, power monitoring, amplifier testing, and measurement applications.

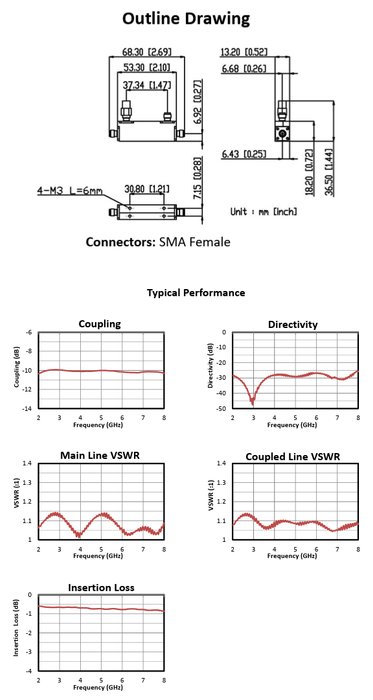

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 2–8 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 2–8 GHz | — | ±0.3 dB | ±0.5 dB |
| Directivity | 2–8 GHz | 22 dB | 25 dB | — |
| Main Line VSWR | 2–8 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 2–8 GHz | — | 1.15:1 | 1.25:1 |
| Insertion Loss (Including Coupling Loss) | 2–8 GHz | — | 0.9 dB | 1.3 dB |
| Average Power Handling | 2–8 GHz | — | — | 20 W |
Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, communications equipment, wireless testing, and RF laboratory applications.
