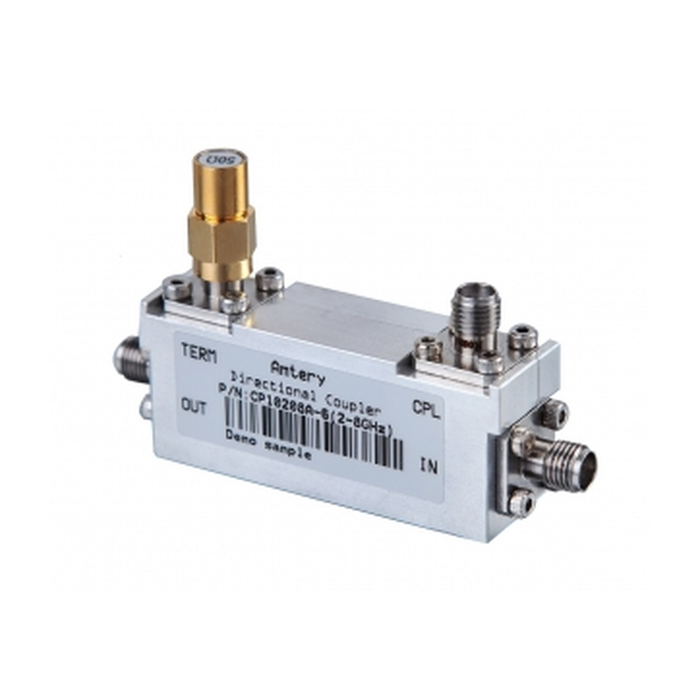

2–8 GHz 6 dB | Directional Coupler | CP10208A-6-MBT
The CP10208A-6-MBT is a 2–8 GHz directional coupler with 6 dB nominal coupling and 50 W average power handling for RF signal sampling, power monitoring, amplifier testing, and measurement applications.
Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 2–8 GHz | 5.3 dB | 6 dB | 6.7 dB |
| Coupling Flatness | 2–8 GHz | — | ±0.2 dB | ±0.3 dB |
| Directivity | 2–8 GHz | 21 dB | 23 dB | — |
| Main Line VSWR | 2–8 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 2–8 GHz | — | 1.20:1 | 1.25:1 |
| Insertion Loss (Including Coupling Loss) | 2–8 GHz | — | 1.7 dB | 2.1 dB |
| Average Power Handling | 2–8 GHz | — | — | 50 W |

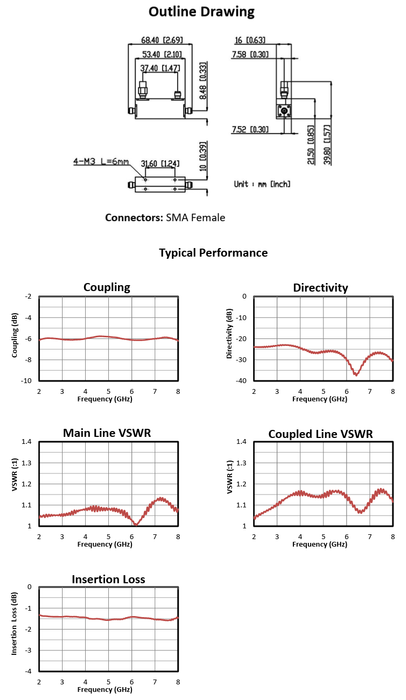

Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, communications equipment, wireless testing, and RF laboratory applications.
