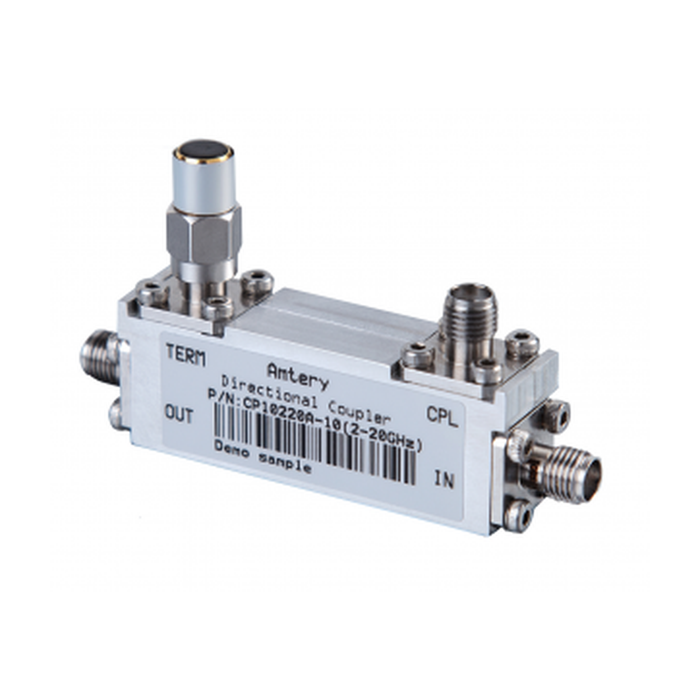

2–20 GHz 10 dB Directional Coupler | CP10220A-10-MBT
The CP10220A-10-MBT is a 2–20 GHz directional coupler with 10 dB nominal coupling for wideband RF signal sampling, forward power monitoring, amplifier testing, and microwave measurement applications.

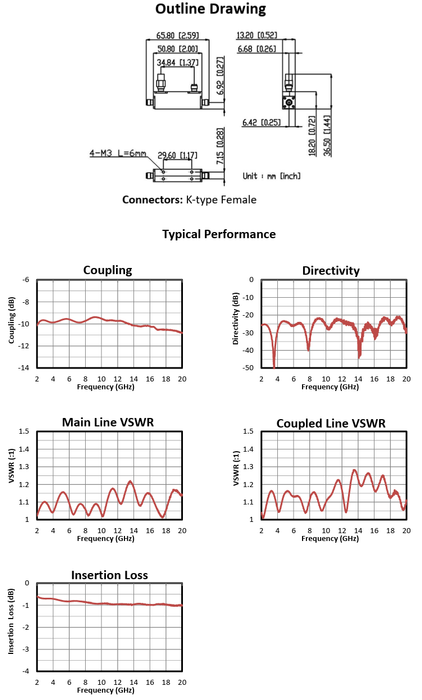

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 2–20 GHz | 9 dB | 10 dB | 11 dB |
| Coupling Flatness | 2–20 GHz | — | ±0.7 dB | ±0.9 dB |
| Directivity | 2–20 GHz | 16 dB | 20 dB | — |
| Main Line VSWR | 2–8 GHz | — | 1.15:1 | 1.25:1 |
| Main Line VSWR | 8–20 GHz | — | 1.20:1 | 1.30:1 |
| Coupled Line VSWR | 2–8 GHz | — | 1.20:1 | 1.25:1 |
| Coupled Line VSWR | 8–20 GHz | — | 1.30:1 | 1.40:1 |
| Insertion Loss (Including Coupling Loss) | 2–20 GHz | — | 1.2 dB | 1.6 dB |
| Average Power Handling | 2–20 GHz | — | — | 20 W |
Connector: SMA Female
Compliance: RoHS Compliant
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF signal sampling, forward power monitoring, amplifier testing, antenna systems, microwave communications, wireless testing, semiconductor test, and RF laboratory applications.
