7–10 GHz 20 dB | High-Power Directional Coupler | CP10710P150-20-MBT

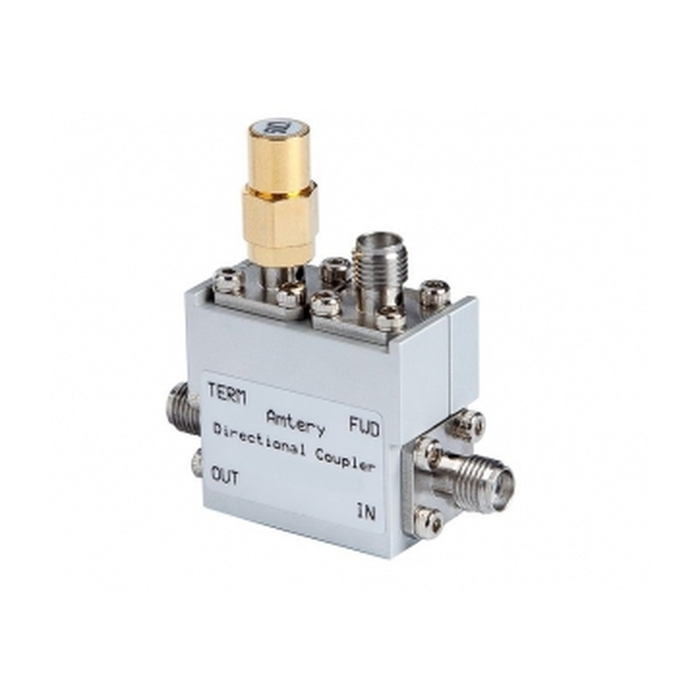

The CP10710P150-20-MBT is a 7–10 GHz high-power directional coupler with 20 dB nominal coupling and up to 150 W average power handling for RF power monitoring, signal sampling, and high-power microwave test applications.

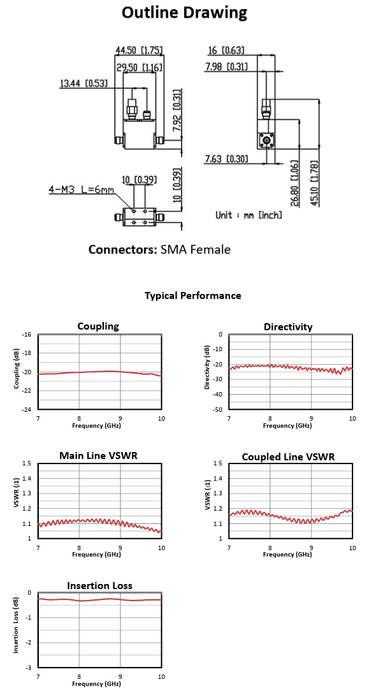

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling | 7–10 GHz | 19.2 dB | 20 dB | 20.8 dB |
| Coupling Flatness | 7–10 GHz | — | ±0.25 dB | ±0.3 dB |
| Directivity | 7–10 GHz | 19 dB | 20 dB | — |
| Main Line VSWR | 7–10 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 7–10 GHz | — | 1.20:1 | 1.30:1 |
| Insertion Loss (Excluding Coupling Loss) | 7–10 GHz | — | 0.35 dB | 0.5 dB |
| Average Power Handling | 7–10 GHz | — | — | 150 W |
Operating Conditions: 50 Ω system, 25°C environment.
Applications
High-power RF monitoring, amplifier testing, radar systems, microwave communications, antenna testing, signal sampling, and RF laboratory applications.
