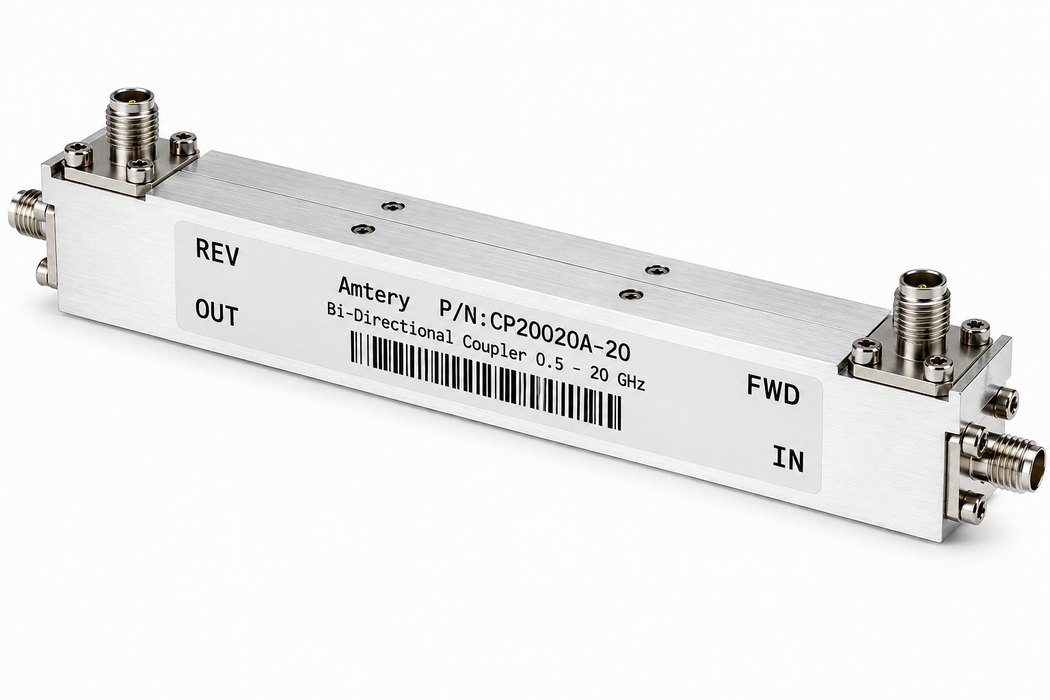

0.5–20 GHz 20 dB Bi-Directional Coupler | CP20020A-20-MBT
The CP20020A-20-MBT is a 0.5–20 GHz bi-directional coupler with approximately 20 dB coupling for forward and reverse RF signal monitoring and measurement.

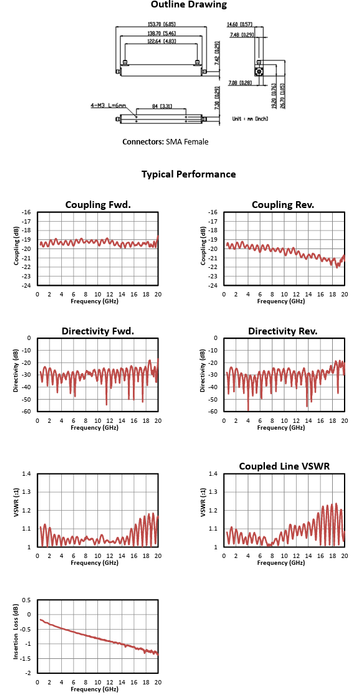

| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling – Forward | 0.5–20 GHz | 18.7 dB | 20 dB | 21.3 dB |
| Coupling Flatness – Forward | 0.5–20 GHz | — | ±0.7 dB | ±1.1 dB |
| Directivity – Forward | 0.5–18 GHz | 17 dB | 19 dB | — |
| Directivity – Forward | 18–20 GHz | 15 dB | 17 dB | — |
| Insertion Loss | 0.5–20 GHz | — | 1.4 dB | 1.7 dB |
| Main Line VSWR | 0.5–18 GHz | — | 1.20:1 | 1.35:1 |
| Main Line VSWR | 18–20 GHz | — | 1.30:1 | 1.40:1 |
| Coupled Line VSWR | 0.5–18 GHz | — | 1.25:1 | 1.35:1 |
| Coupled Line VSWR | 18–20 GHz | — | 1.30:1 | 1.40:1 |
| Nominal Coupling – Reverse | 0.5–20 GHz | 19.6 dB | 21 dB | 22.5 dB |
| Coupling Flatness – Reverse | 0.5–20 GHz | — | ±1.4 dB | ±1.8 dB |
| Directivity – Reverse | 0.5–18 GHz | 16 dB | 18 dB | — |
| Directivity – Reverse | 18–20 GHz | 13 dB | 15 dB | — |
| Average Power Handling | 0.5–20 GHz | — | — | 20 W |
Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
