0.4–8 GHz 20 dB Bi-Directional Coupler | CP200408A-20-MBT

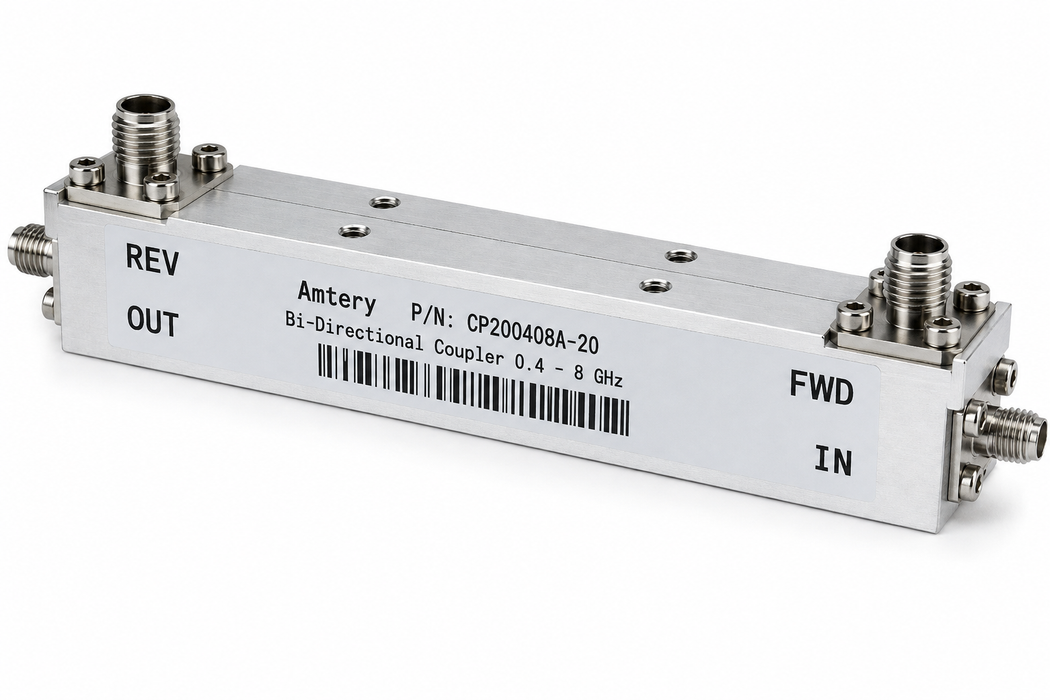

The CP200408A-20-MBT is a 0.4–8 GHz bi-directional coupler with approximately 20 dB coupling for forward and reverse RF signal monitoring and measurement.

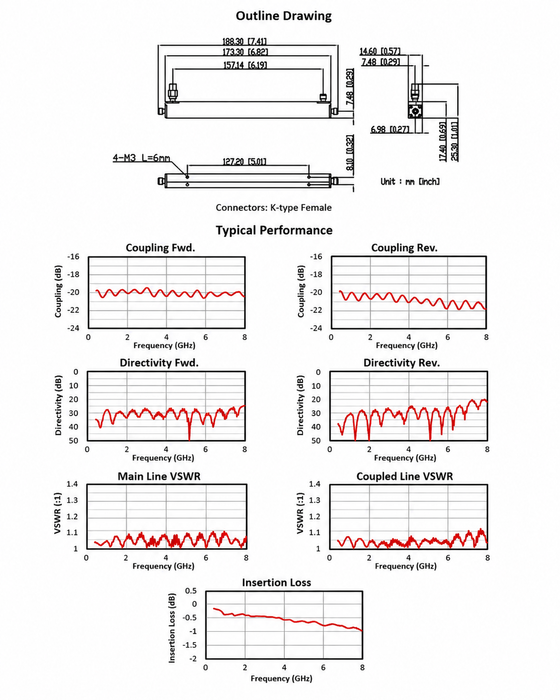

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling – Forward | 0.4–8 GHz | 19 dB | 20 dB | 21 dB |
| Coupling Flatness – Forward | 0.4–8 GHz | — | ±0.9 dB | ±1.3 dB |
| Directivity – Forward | 0.4–4 GHz | 24 dB | 26 dB | — |
| Directivity – Forward | 4–8 GHz | 21 dB | 24 dB | — |
| Main Line VSWR | 0.4–4 GHz | — | 1.15:1 | 1.20:1 |
| Main Line VSWR | 4–8 GHz | — | 1.20:1 | 1.25:1 |
| Coupled Line VSWR | 0.4–4 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 4–8 GHz | — | 1.20:1 | 1.30:1 |
| Insertion Loss | 0.4–8 GHz | — | 0.9 dB | 1.1 dB |
| Nominal Coupling – Reverse | 0.4–8 GHz | 19.5 dB | 20.5 dB | 21.6 dB |
| Coupling Flatness – Reverse | 0.4–8 GHz | — | ±1.1 dB | ±1.4 dB |
| Directivity – Reverse | 0.4–4 GHz | 22 dB | 24 dB | — |
| Directivity – Reverse | 4–8 GHz | 19 dB | 21 dB | — |
| Average Power Handling | 0.4–8 GHz | — | — | 30 W |
Operating Conditions: 50 Ω system, 25°C environment.
Applications
RF power monitoring, forward and reverse signal measurement, amplifier testing, antenna systems, communications equipment, and RF test applications.
