7–10 GHz 20 dB Bi-Directional Coupler | CP20710P150-20-MBT

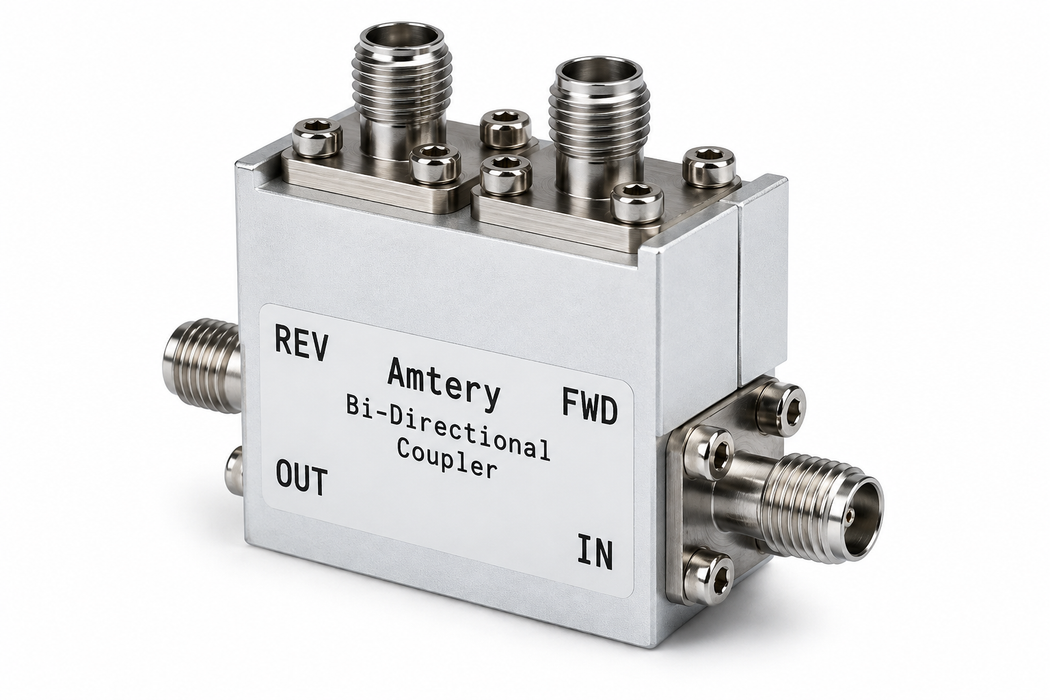

The CP20710P150-20-MBT is a 7–10 GHz bi-directional coupler with 20 dB nominal coupling and 150 W average power handling for forward and reverse RF monitoring.

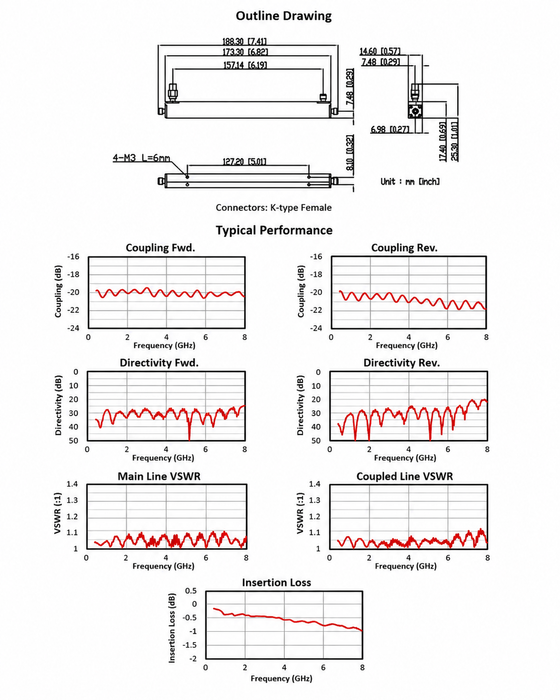

Electrical Specifications
| Parameter | Frequency | Min. | Typ. | Max. |
|---|---|---|---|---|
| Nominal Coupling – Forward | 7–10 GHz | 19.2 dB | 20 dB | 20.8 dB |
| Coupling Flatness – Forward | 7–10 GHz | — | ±0.25 dB | ±0.3 dB |
| Directivity – Forward | 7–10 GHz | 20 dB | 22 dB | — |
| Main Line VSWR | 7–10 GHz | — | 1.15:1 | 1.25:1 |
| Coupled Line VSWR | 7–10 GHz | — | 1.20:1 | 1.30:1 |
| Insertion Loss (Including Coupling Loss) | 7–10 GHz | — | 0.35 dB | 0.5 dB |
| Nominal Coupling – Reverse | 7–10 GHz | 19.2 dB | 20 dB | 20.8 dB |
| Coupling Flatness – Reverse | 7–10 GHz | — | ±0.25 dB | ±0.3 dB |
| Directivity – Reverse | 7–10 GHz | 18 dB | 21 dB | — |
| Average Power Handling | 7–10 GHz | — | — | 150 W |
Connector: SMA Female
Operating Conditions: 50 Ω system, 25°C environment.
Applications
High-power RF monitoring, forward and reverse power measurement, amplifier testing, antenna systems, communications equipment, and RF test applications.
