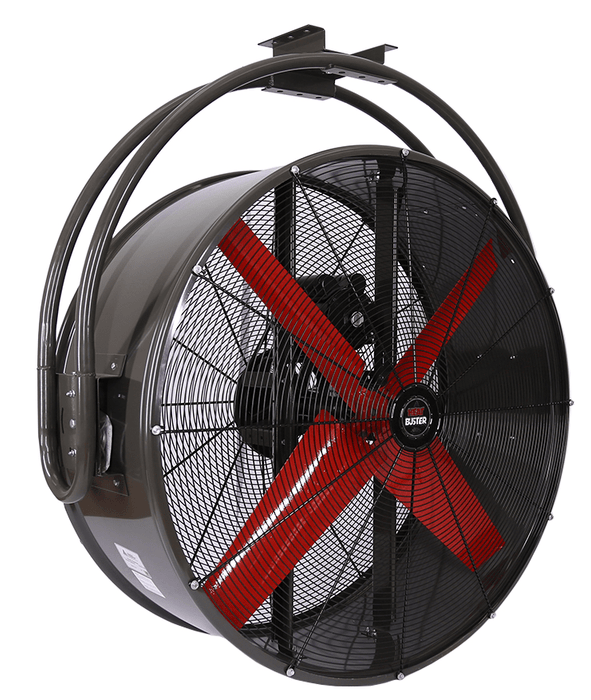

Explosion Proof Drum Type Ceiling Mount Circulating Fan 48 inch 19460 CFM 3 Phase Belt Drive CMB4815-HL-X

$6,118.00

Explosion proof Heat Buster® fans are practical, rugged, low-cost air movers used worldwide to cool factories, shops, bakeries, loading docks, laundries, gymnasiums, warehouses, aircraft hangars, and virtually any place a high volume of air movement is required.

FEATURES:
Heavy gauge cold-rolled steel barrels
115-volt, 60-hertz single-phase motors
Automatic drive-belt tensioning
Optional one-speed or two-speed motor
Balanced, deep pitch blades
Spiral-wound wire guard meets OSHA requirements
Attractive bronze powder coat finish
Dimensions: 56"W x 22"D x 61 1/2"H
Tilts 90° and swivels 360°
Includes safety cable

HL Fans Have:
Motors are Class I, Div. I, Group D and Class II, Div. I, Groups F & G
One speed explosion proof motor
Aluminum Blade
No power switch
No wiring









    DIMENSIONS:
    A = 57"
    B = 24"
    C = 63"

    Specification:

    • Model No.: CMB4815-HL-X
    • Voltage:115
    • Warehouse:Arkansas
    • Made In U.S.A.:Yes
    • Type:Explosion Proof
    • Amps:11
    • Blade Size (Inches):48
    • No. of Blades:4
    • CFM High:19460
    • Dimension Inches:Width: 57" Depth: 24" Height: 63"
    • Drive Type:Belt
    • Horsepower:1
    • Limited Warranty:1 Year Limited
    • Motor Type:Explosion Proof
    • RPM High:475
    • Phase:3
    • Speed(s):1
    • Weight lbs.:317
    CMB4815-HL-X
    ×

    Call for Price
