Hazardous Location RVI Cabinet Supply Fan 48 inch 23700 CFM 115/230 Volt RVI4818HL-U

6′ or 10′ pole for installation in concrete

Triangle’s JetAire high velocity fans are manufactured with a polyester powder coated steel housing. JetAire high velocity fans are ideal for industrial, commercial and golf course applications.

Features:

Belt drive, 54" Blade

Available with or without oscillation

Single or three phase motors

Optional mister kit for added comfort

Bronze polyester powder coat finish

Totally enclosed motors

Moves a large concentration of air at distances of 100' or more

Tilted head for desired direction of airflow

6′ or 10′ pole for installation in concrete

Triangle’s JetAire high velocity fans are manufactured with a polyester powder coated steel housing. JetAire high velocity fans are ideal for industrial, commercial and golf course applications.

Features:

Belt drive, 54" Blade

Available with or without oscillation

Single or three phase motors

Optional mister kit for added comfort

Bronze polyester powder coat finish

Totally enclosed motors

Moves a large concentration of air at distances of 100' or more

Tilted head for desired direction of airflow

No Wiring

Non-Sparking Aluminum Blades

Stationary Motor Mounts

Belt Drive: Single Speed, DIV. I, CLASS I, GROUP D & CLASS II, GROUPS F & G

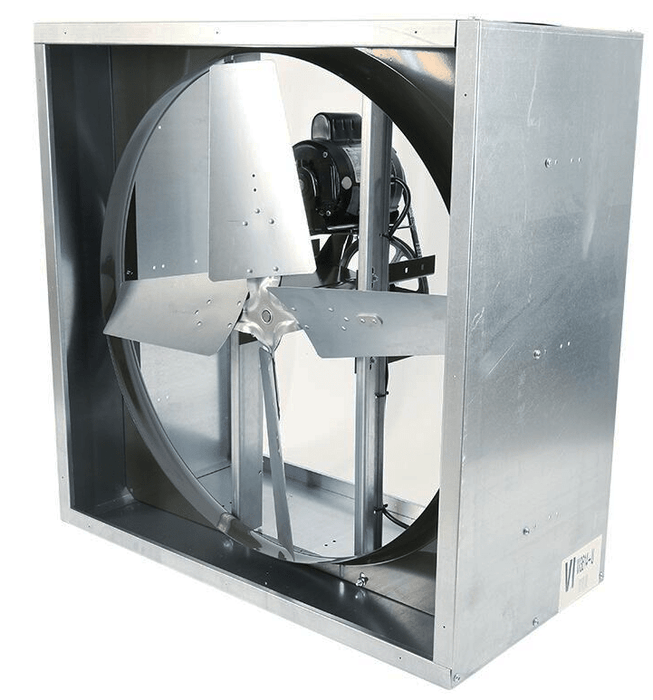

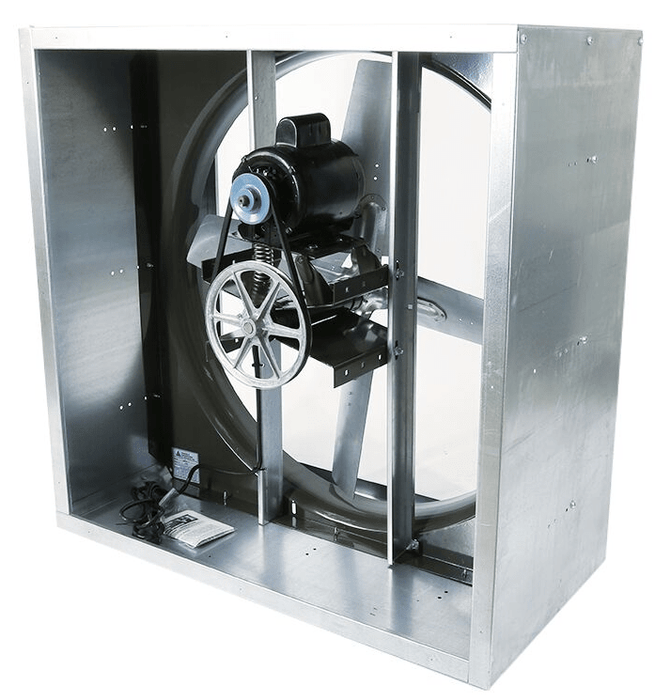

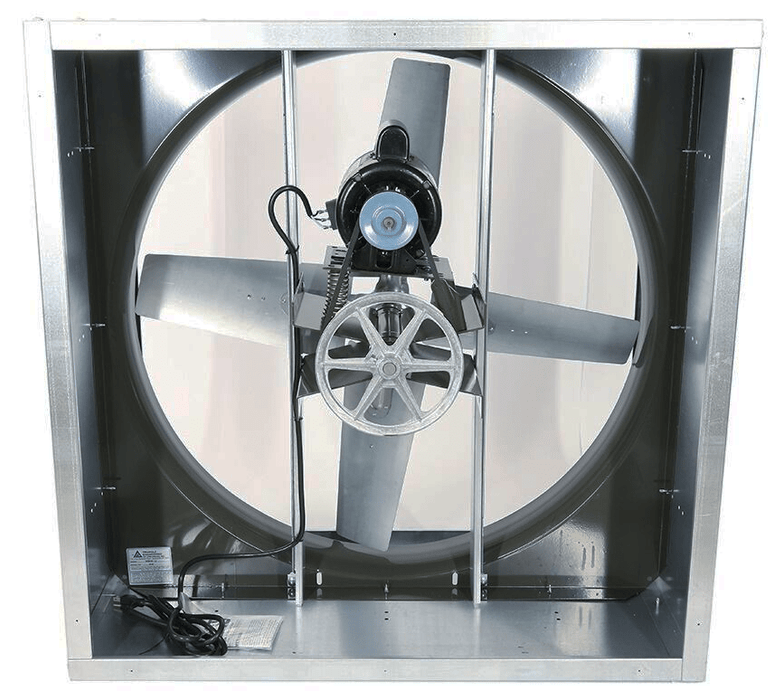

Triangle’s “RVI” Series Belt Drive Heavy Duty Industrial Supply Fans are designed to meet the supply airflow needs of factories, warehouses, gymnasiums, greenhouses, etc. The “RVI” Series Heavy Duty Industrial belt drive supply fans come standard with a polyester powder coated venturi to improve airflow and protect against corrosion as well as a heavy-gauge galvanized housing for corrosion resistance.

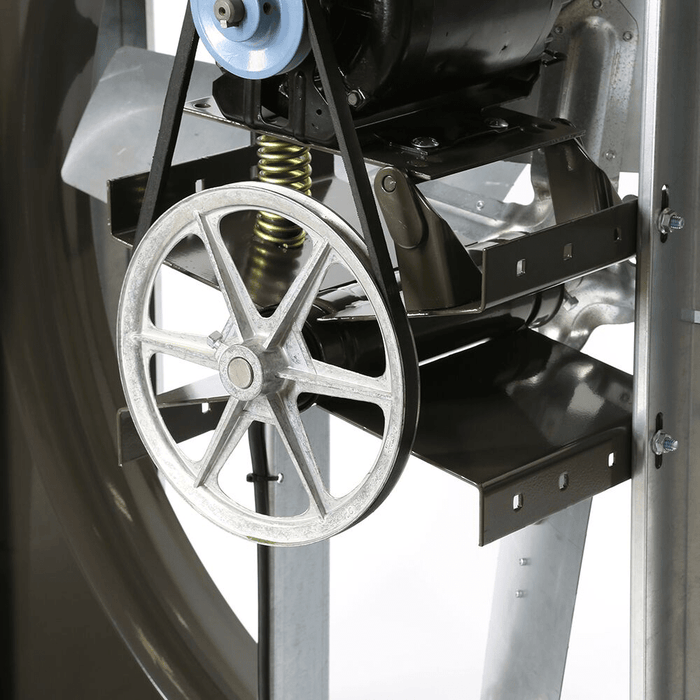

Triangle’s Exclusive X-Wing Belt Tensioner

All standard “RVI” models up to 1 ½ HP come equipped with Triangle’s exclusive “X-Wing” Belt Tensioner which reduces maintenance and extends belt and motor life.

Dimensional Data:

A: 52-3/4"
B: 52-3/4"
C: 30"

Specification:

• Model No.: RVI4818HL-U
• Voltage:115 / 230
• Warehouse:Arkansas
• Made In U.S.A.:Yes
• Type:Explosion Proof
• Blade Material:Aluminum
• Blade Size (Inches):48No. of Blades:4
• CFM High:23700
• Dimension Inches:Width: 52-3/4" Depth: 30" Height: 52-3/4"
• Hertz:60
• Drive Type:Belt
• Horsepower:3
• Limited Warranty:1 Year Limited
• Motor Type:Explosion Proof
• Phase:1
• Speed(s):1
• Weight lbs.:305
