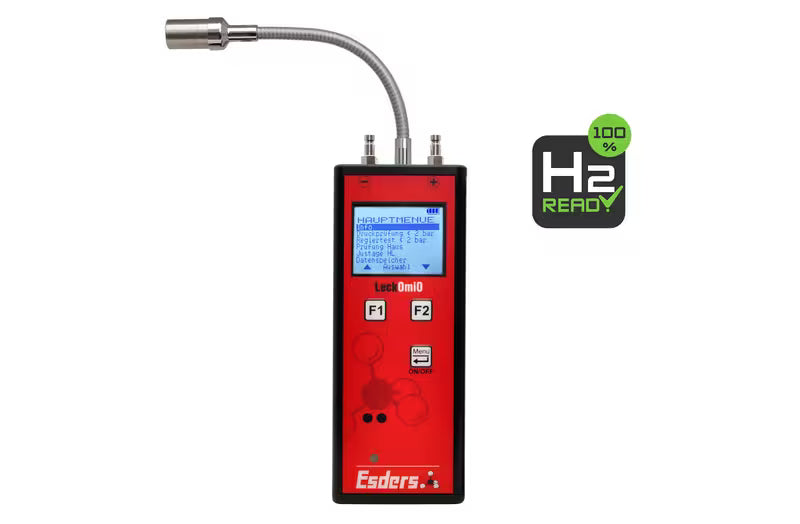

LeckOmiO Methane Leak Detector & Pressure Tester
The LeckOmiO Methane Leak Detector & Digital Pressure Tester combines high-sensitivity methane leak detection with precision digital pressure testing in one rugged handheld instrument. Designed for HVAC contractors, gas utility technicians, pipeline operators, and service professionals, it enables users to quickly locate methane leaks, perform pressure tests, and document results using a single device.
The LeckOmiO family is available in four configurations to match different applications:
- Standard – The core model for everyday methane leak detection and pressure testing on residential and commercial gas installations.
- LS – Features a shorter 25 cm gooseneck sensor, making it easier to inspect confined spaces, cabinets, and hard-to-reach fittings.

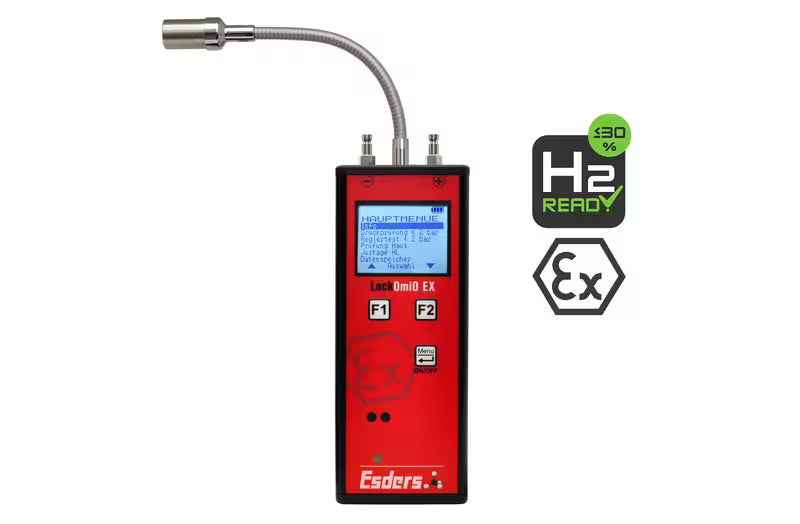

- EX – ATEX-certified explosion-proof version designed for hazardous and classified work environments where intrinsically safe equipment is required.
- EX ESP – ATEX-certified model optimized for gas pressure regulator stations and utility applications, featuring a 1,600 mbar differential pressure range with enhanced measurement accuracy for specialized pressure testing.
Each model is available with either standard replaceable batteries or a rechargeable battery pack, allowing users to select the configuration that best fits their workflow.
Ideal Applications

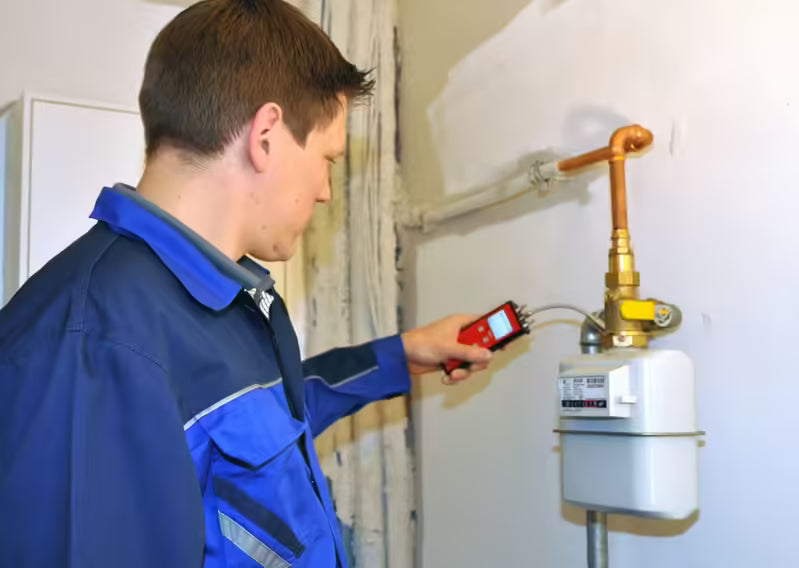

- Natural gas leak detection
- Residential and commercial gas installations
- HVAC service
- Gas utility maintenance
- Pipeline inspections
- Load and tightness testing

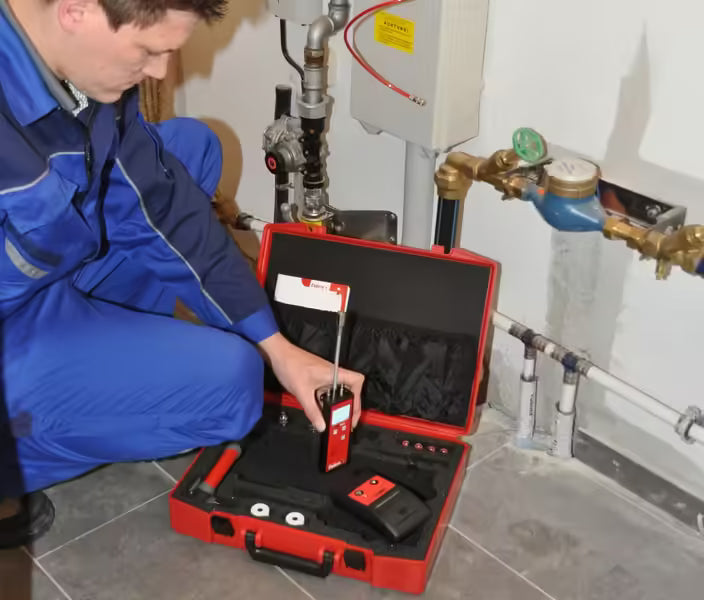

- Pressure testing
- Preventive maintenance
- Hazardous (ATEX) environments
Key Features
- Combines methane leak detection and digital pressure testing
- Detects methane concentrations up to 10,000 ppm
- Differential pressure measurement up to 2,000 mbar (29 psi) or 1,600 mbar (ESP models)
- Flexible gooseneck methane sensor
- Audible, visual, and vibration alarms
- Guided TRGI load and leak testing
- Displays minimum, maximum, start, end, and pressure drop values
- Rugged aluminum housing
- High-contrast backlit LCD display
- Compatible with Esders PC-1 software for digital reporting
- Available in ATEX-certified explosion-proof models
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Gas Detected | Methane (CH₄) |
| Gas Measurement Range | 0–10,000 ppm CH₄ |
| Pressure Range | 0–200 mbar & 200–2,000 mbar (ESP: 1,600 mbar max.) |
| Pressure Resolution | 0.1 mbar / 1 mbar |
| Pressure Accuracy | ±0.5% Full Scale |
| Display | 128 × 64 Backlit LCD |
| Alarm | Audible, Visual & Vibration |
| Power Options | AA Battery or Rechargeable NiMH (varies by model) |
| Battery Life | Up to 100 hrs (pressure) / 20 hrs (gas detection) depending on model |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) |
| Housing | Rugged Aluminum |
| Software | Esders PC-1 Compatible |
| Certifications | ATEX (EX models) |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| Variant | SKU |
|---|---|
| Standard • Battery | MBT-261240 |
| Standard • Rechargeable | MBT-261250 |
| LS • Battery | MBT-261242 |
| LS • Rechargeable | MBT-261252 |
| EX • Battery | MBT-271240 |
| EX • Rechargeable | MBT-271250 |
| EX ESP • Battery | MBT-271246 |
| EX ESP • Rechargeable | MBT-271256 |
