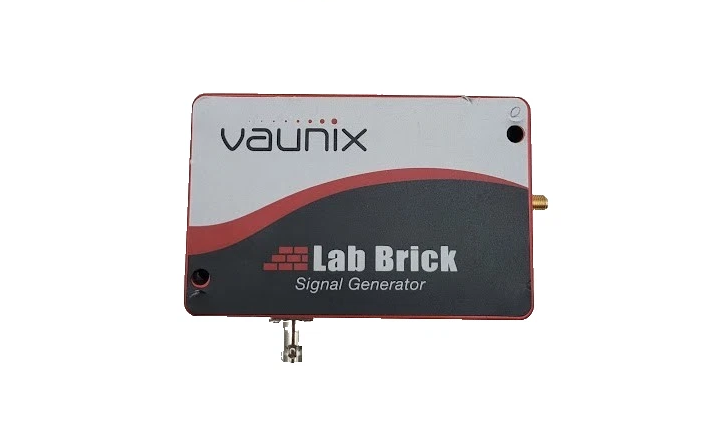

LMS-322D USB Programmable RF Signal Generator 600MHz-3.2GHz Lab Brick

The Vaunix LMS-322D (Used) Lab Brick is a compact, USB-controlled RF signal generator covering 600 MHz to 3.2 GHz. Designed for engineering, production, and automated test environments, it offers precise frequency control, fast switching speeds, and programmable frequency sweeps in a portable form factor.

Key Features

• Frequency coverage from 600 MHz to 3.2 GHz

• USB-powered and USB-controlled operation

• Output power adjustable from +10 dBm to -45 dBm

• High-resolution 100 Hz frequency step size

• Fast 100 microsecond frequency switching

• Programmable linear frequency sweep capability

• 55 dB dynamic power control range with 0.5 dB step resolution

• Built-in support for an external 10 MHz reference

• Includes graphical user interface (GUI) software

• Compatible with API, DLL, Linux, and LabVIEW drivers

• Durable cast aluminum enclosure designed for laboratory and production environments

Specifications

• Frequency Range: 600 MHz to 3.2 GHz

• Frequency Resolution: 100 Hz

• Switching Speed: 100 µs

• Output Power Range: +10 dBm to -45 dBm

• Power Control Resolution: 0.5 dB

• Phase Noise: -90 dBc/Hz @ 10 kHz offset

• Phase Noise: -97 dBc/Hz @ 100 kHz offset

• Typical Spurious Output: -80 dBc

• Typical Harmonics: -20 dBc

• External Reference Input: 10 MHz (Standard)

• Interface: USB Power and Control

Typical Applications

• Automated Test Equipment (ATE)

• RF and Wireless Device Testing

• Engineering and Production Test Labs

• Portable Local Oscillator (LO) Source

• General RF Signal Generation and Development
