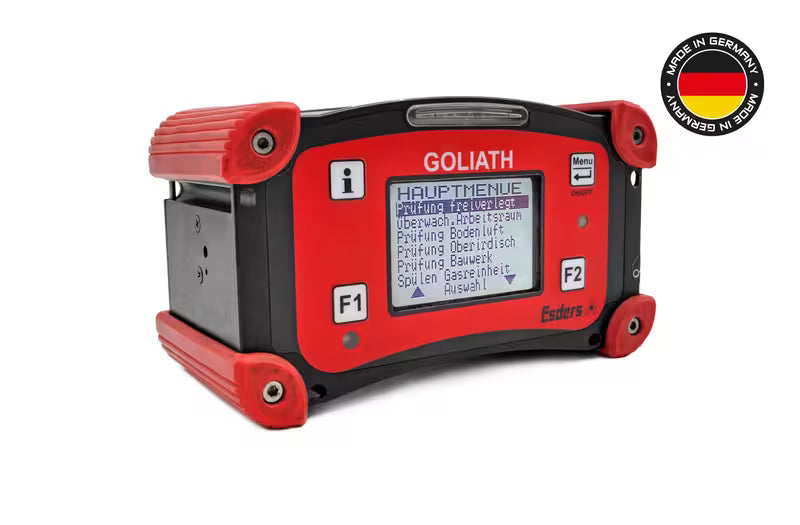

Natural Gas Leak Detector for Utility Pipeline Inspection
The GOLIATH RN Natural Gas Leak Detector is a professional explosion-proof gas detection instrument designed for natural gas utilities, pipeline operators, emergency response teams, and LDAR (Leak Detection & Repair) programs. Engineered for fast, reliable methane leak detection, it combines high-performance infrared sensing with an integrated diaphragm pump to quickly locate gas leaks, verify gas concentrations, and support safe utility operations.
Ideal for pipeline inspections, building surveys, bar hole testing, confined space monitoring, and gas purity verification, the GOLIATH RN also supports optional sensors for propane, oxygen, carbon monoxide, and gas flow velocity measurement. Its rugged ATEX-certified construction, large backlit display, and fast sensor response make it an excellent solution for demanding field environments.
Ideal Applications
- Natural gas utility inspections
- Pipeline leak detection

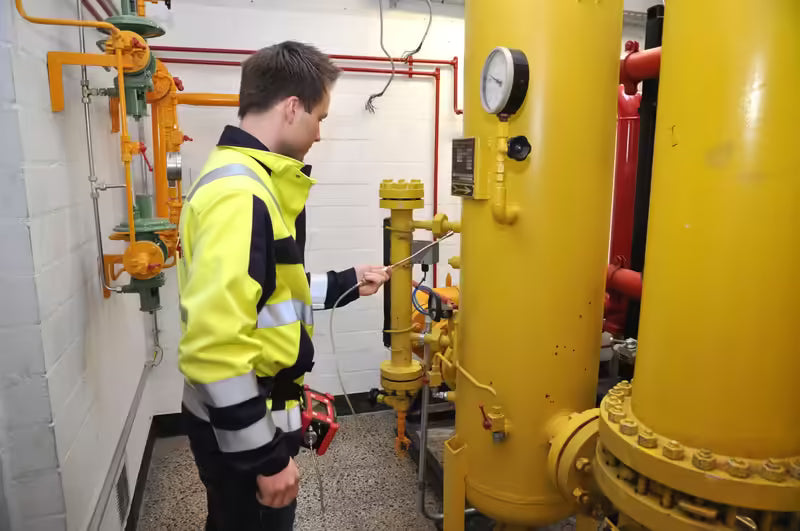

- Building gas inspections
- Bar hole testing
- Pipeline commissioning
- Gas purity verification
- LDAR (Leak Detection & Repair)
- Utility emergency response
Key Features
- High-sensitivity methane leak detection
- Measures methane in ppm and % volume
- Integrated diaphragm sampling pump
- Fast methane and CO₂ response
- Optional propane, oxygen, and carbon monoxide sensors
- Optional gas flow velocity measurement
- Rugged ATEX-certified explosion-proof housing
- Large backlit LCD display
- Stores over 1 million measurements
- Rechargeable NiMH battery
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detectable Gases | Methane (CH₄), Carbon Dioxide (CO₂), Optional Propane, O₂ & CO |
| Methane Range | ppm and % Vol. |
| Carbon Dioxide | 0–5% / 0–100% Vol. CO₂ |
| Oxygen (Optional) | 0–25% Vol. O₂ |
| Carbon Monoxide (Optional) | 0–500 ppm CO |
| Flow Velocity | Optional |
| Display | 128 × 64 Backlit LCD |
| Battery | Rechargeable NiMH |
| Battery Life | Varies by application |
| Data Storage | 1,000,000+ measurements |
| Protection Rating | IP54 |
| Operating Temperature | 14°F–104°F (-10°C to 40°C) |
| Dimensions | 7.9 × 3.9 × 3.4 in (200 × 100 × 87 mm) |
| Weight | 2.8 lb (1.25 kg) |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU | MBT-201052 |
