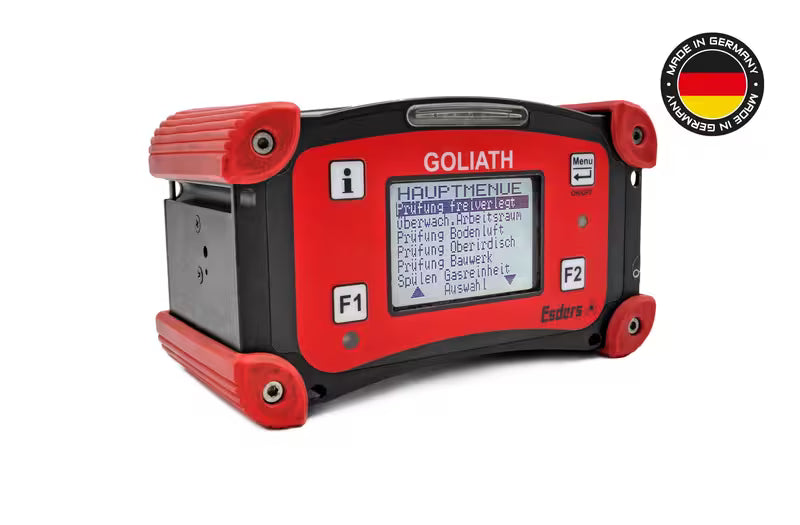

Natural Gas Leak Detector Ethane Analysis for Utility Pipeline Inspection
The GOLIATH RN with Ethane Analysis is a professional explosion-proof gas detection instrument designed for natural gas utilities, pipeline operators, emergency response teams, and LDAR (Leak Detection & Repair) programs. In addition to highly sensitive methane detection, it features integrated ethane analysis, allowing technicians to distinguish natural gas from biogas or swamp gas—reducing false leak investigations and improving inspection efficiency.
Built for utility field operations, the GOLIATH RN measures methane and carbon dioxide while supporting optional oxygen and carbon monoxide sensors. Its integrated diaphragm pump, fast infrared sensing, rugged ATEX-certified construction, and onboard ethane analysis make it an ideal solution for pipeline inspections, building surveys, bar hole testing, gas purity verification, and emergency leak response.
Ideal Applications
- Natural gas utility inspections
- Pipeline leak detection
- Ethane analysis
- Building gas inspections
- Bar hole testing
- Pipeline commissioning
- Gas purity verification
- LDAR (Leak Detection & Repair)
- Utility emergency response
Key Features
- High-sensitivity methane leak detection
- Integrated ethane analysis
- Distinguishes natural gas from biogas
- Measures methane in ppm and % volume
- Fast methane and CO₂ response
- Integrated diaphragm sampling pump
- Optional oxygen and carbon monoxide sensors
- Rugged ATEX-certified explosion-proof housing
- Large backlit LCD display
- Stores over 1 million measurements
- Rechargeable NiMH battery
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detectable Gases | Methane (CH₄), Carbon Dioxide (CO₂), Ethane (Analysis), Optional O₂ & CO |
| Methane Range | ppm and % Vol. |
| Carbon Dioxide | 0–5% / 0–100% Vol. CO₂ |
| Ethane Analysis | Integrated |
| Oxygen (Optional) | 0–25% Vol. O₂ |
| Carbon Monoxide (Optional) | 0–500 ppm CO |
| Display | 128 × 64 Backlit LCD |
| Battery | Rechargeable NiMH |
| Battery Life | Varies by application |
| Data Storage | 1,000,000+ measurements |
| Protection Rating | IP54 |
| Operating Temperature | 14°F–104°F (-10°C to 40°C) |
| Dimensions | 7.9 × 3.9 × 3.4 in (200 × 100 × 87 mm) |
| Weight | 2.8 lb (1.25 kg) |
| Certifications | ATEX II 2G Ex ib d IIB T3/T4 Gb |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU | MBT-201053 |
