Portable Single Gas Detector for CO, H₂S or O₂ Monitoring
The Esders Single Gas Detector is a compact, maintenance-free personal gas monitor designed to protect workers in hazardous environments. Available for carbon monoxide (CO), hydrogen sulfide (H₂S), or oxygen (O₂) monitoring, it delivers continuous gas detection with audible, visual, and vibration alarms to help safeguard personnel in industrial facilities, utilities, confined spaces, wastewater plants, oil & gas operations, and emergency response.
Designed for simplicity and reliability, the Single Gas Detector offers up to 24 months of operational life after activation, requires minimal maintenance, and supports bump testing, calibration, programmable alarm thresholds, and event logging through an optional infrared communication module. Its rugged IP66/IP67 enclosure and ATEX certification make it ideal for demanding industrial environments.
Ideal Applications
- Personal gas monitoring
- Confined space entry
- Utility workers
- Wastewater treatment plants
- Oil & gas facilities
- Fire departments
- Industrial safety
- Emergency response
Key Features

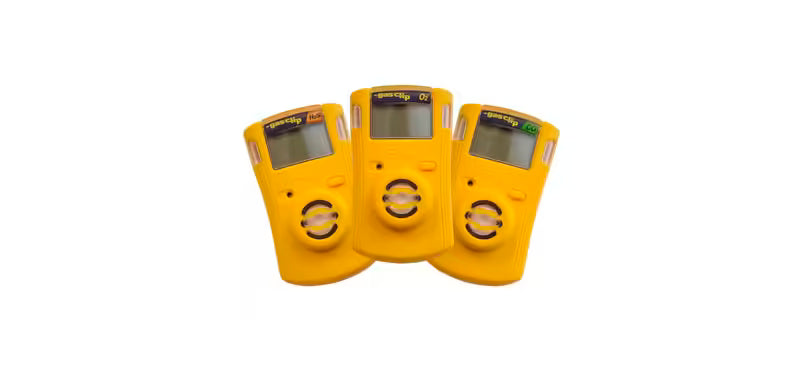

- Available for CO, H₂S, or O₂ detection
- Up to 2-year operational life
- Audible, visual, and vibration alarms
- Programmable alarm thresholds
- Event logging via optional IR interface
- Self-test and bump test reminders
- Rugged IP66/IP67 enclosure
- ATEX & IECEx certified
- Compact, lightweight design
- Maintenance-free operation
Technical Specifications
| Specification | Value |
|---|---|
| Available Gas Types | Carbon Monoxide (CO), Hydrogen Sulfide (H₂S), Oxygen (O₂) |
| CO Range | 0–300 ppm |
| H₂S Range | 0–100 ppm |
| O₂ Range | 0–30% Vol. |
| Display | Alphanumeric LCD |
| Alarm | Audible (>95 dB), Visual & Vibration |
| Operational Life | Up to 2 years |
| Warranty | 18 months |
| Protection Rating | IP66/IP67 |
| Operating Temperature |
CO & H₂S: -40°F to 122°F (-40°C to 50°C) O₂: -31°F to 122°F (-35°C to 50°C) |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 3.2 × 2.0 × 1.1 in (81 × 50 × 28 mm) |
| Weight | 2.7 oz (76 g) |
| Certifications | ATEX II 1G Ex ia IIC T4 Ga, IECEx Ex ia IIC T4 |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU |
MBT-271507 |
