Remote Methane Leak Detector for Pipeline & Utility Inspections

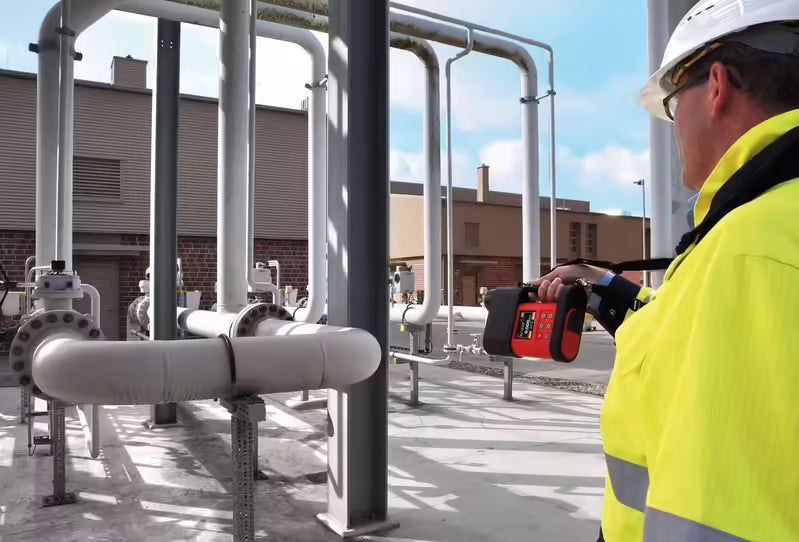

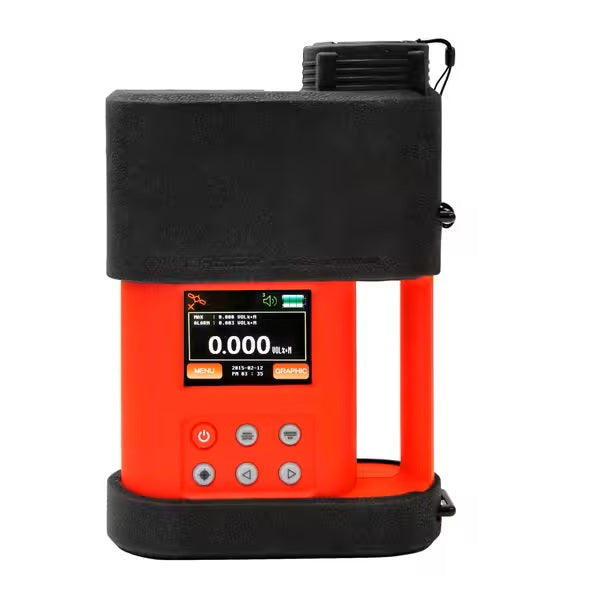

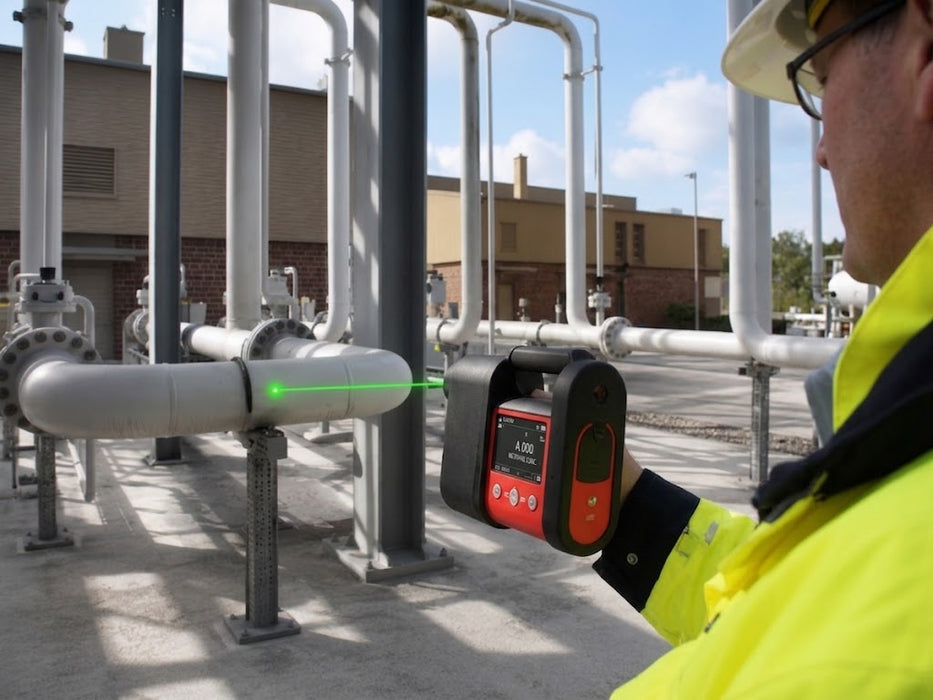

The ELLI Remote Methane Leak Detector is a professional handheld laser methane detector designed for natural gas utilities, pipeline operators, biogas facilities, and LDAR (Leak Detection & Repair) inspections. Using advanced TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology, ELLI detects methane leaks from a safe distance of up to 98 ft (30 m)—or 164 ft (50 m) under optimal conditions—allowing technicians to inspect elevated, inaccessible, or hazardous areas without direct contact.
Engineered for fast, safe, and efficient leak surveys, ELLI delivers methane readings in just 0.1 seconds while eliminating cross-sensitivity to other hydrocarbons. The integrated GPS, wireless data transfer, touchscreen interface, and visible green aiming laser streamline documentation and inspection workflows for utilities, renewable natural gas (RNG), biogas facilities, and industrial gas systems.
Ideal Applications
- Natural gas pipeline inspections
- Utility leak surveys
- LDAR (Leak Detection & Repair)

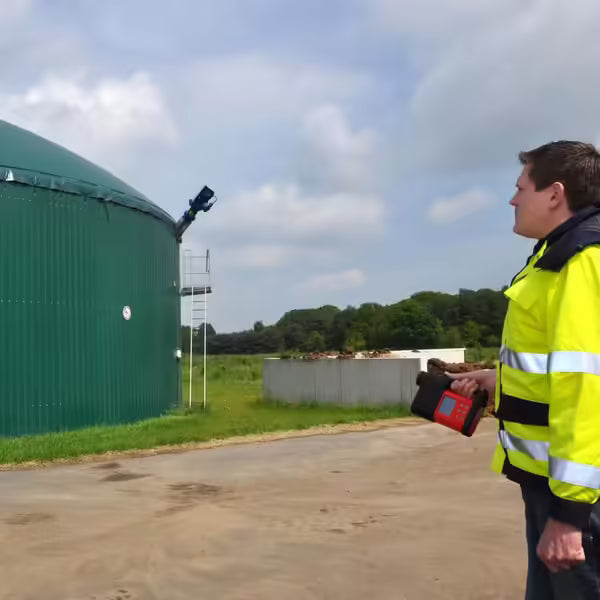

- Biogas plants
- Renewable natural gas (RNG) facilities

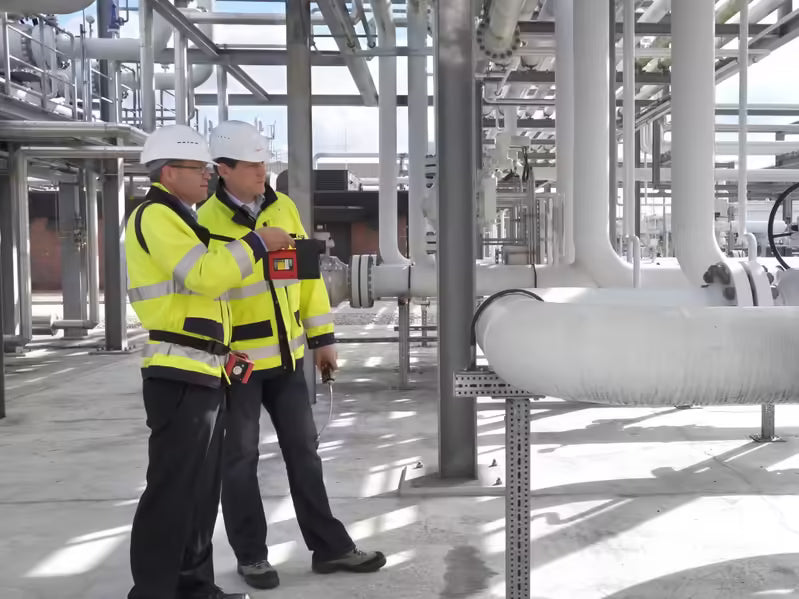

- Compressor stations
- Elevated pipeline inspections
- Hazardous area inspections
Key Features
- Remote methane detection up to 98 ft (30 m) standard and 164 ft (50 m) under ideal conditions
- TDLAS laser methane detection technology
- Ultra-fast 0.1-second response time
- Measures methane up to 50,000 ppm·m
- No cross-sensitivity to other hydrocarbons
- Color LCD touchscreen
- Integrated GPS and wireless data transfer
- User-programmable alarm thresholds
- Green Class 2M aiming laser
- Rechargeable Li-ion battery with 8-hour runtime
- Rugged IP54 enclosure

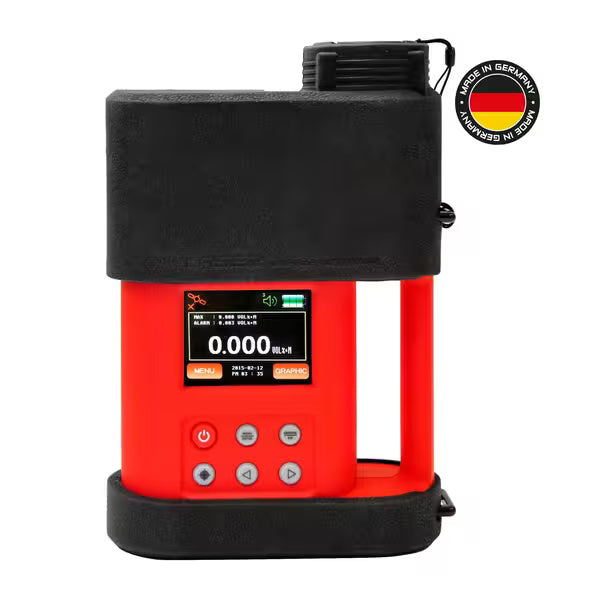

- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Detection Gas | Methane (CH₄) |
| Detection Technology | TDLAS (Tunable Diode Laser Absorption Spectroscopy) |
| Measurement Range | 0–50,000 ppm·m |
| Scanning Distance | 98 ft (30 m) standard, 164 ft (50 m) under ideal conditions |
| Response Time | 0.1 seconds |
| Display | Color LCD Touchscreen |
| GPS | Integrated |
| Connectivity | USB, Wireless Data Transfer, Headphone Jack |
| Battery | Rechargeable Li-Ion |
| Battery Life | 8 hours |
| Charging Time | 6 hours |
| Protection Rating | IP54 |
| Operating Temperature | 1°F to 122°F (-17°C to 50°C) |
| Humidity | 5–90% RH |
| Dimensions | 9.3 × 6.6 × 2.9 in (237 × 167 × 74 mm) |
| Weight | 3.5 lb (1.6 kg) |

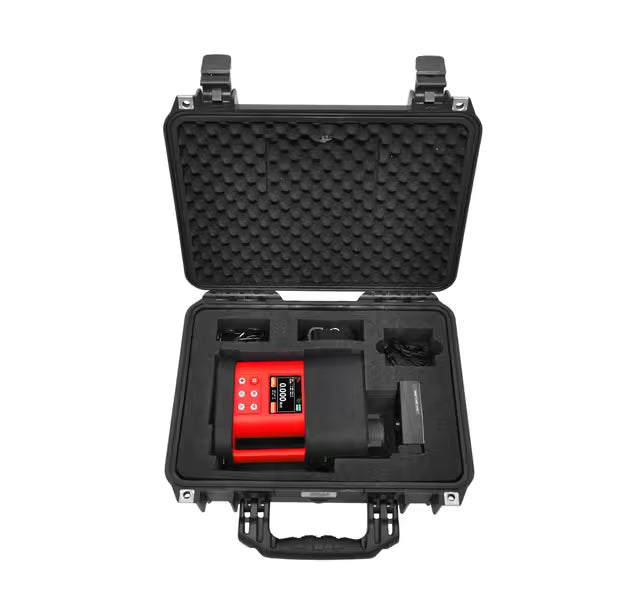

| Included | Rugged Carrying Case, Charger, Carrying Strap, Earphones |
| Warranty | 24 Months |
| Country of Origin | Germany |
| HS Code | 9027.10 |
| SKU | MBT-730002 |
