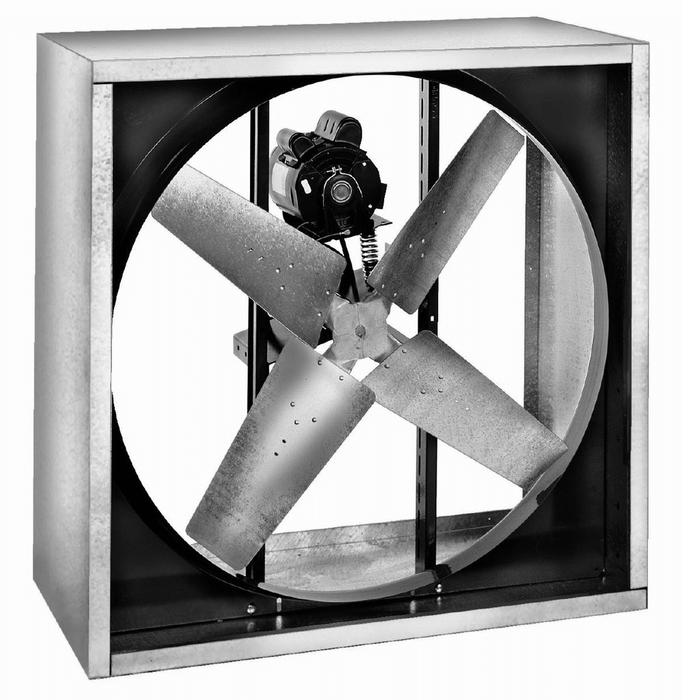

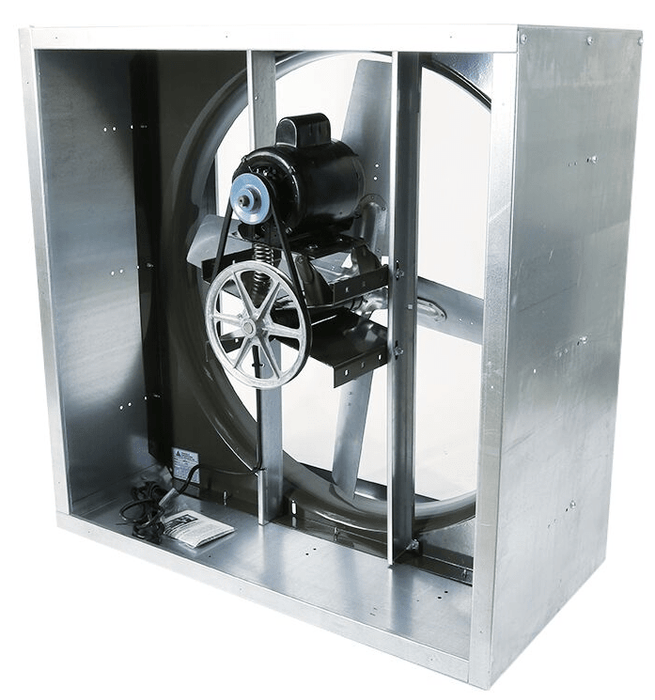

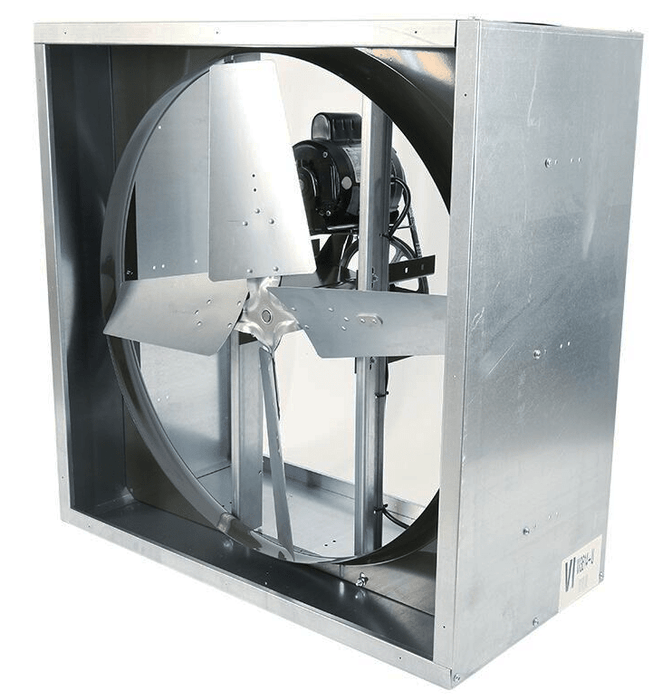

RVI Cabinet Supply Fan 60 inch 34700 CFM 115/230 Volt Belt Drive RVI6018-U

$7,190.00

"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. VI fans feature extra-heavy-duty steel componen

VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

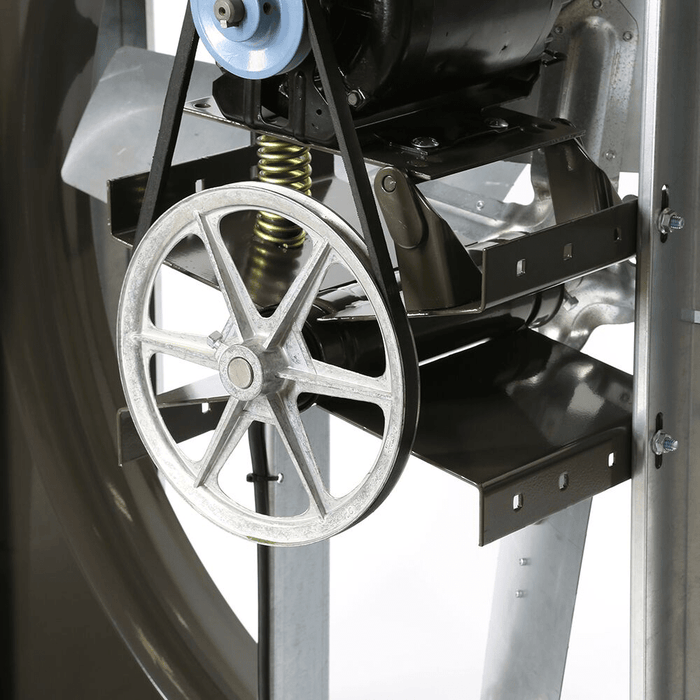

Triangle’s Exclusive X-Wing Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.

VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460 / 3 from factory.

**NOTE: When purchasing intake shutters, they are designed to be opened BEFORE turning the fan on.

Dimensional Data:

A: 68-7/8"
B: 68-7/8"
C: 30"

Specification:

  • Model No.: RVI6018-U
  • Voltage:115 / 230
  • Warehouse:Arkansas
  • Made In U.S.A.:Yes
  • Type:Supply Air
  • Blade Material:Steel
  • Blade Size (Inches):60
  • No. of Blades:4
  • CFM High:34700
  • Construction:Steel
  • Dimension Inches:Width: 68-7/8" Depth: 30" Height: 68-7/8"
  • Hertz:60
  • Drive Type:Belt
  • Horsepower:3
  • Limited Warranty:1 Year Limited
  • Motor Type:ODP
  • Phase:1
  • Speed(s):1
  • Weight lbs.:445
RVI6018-U
