RVI Cabinet Supply Fan 60 inch 43100 CFM 230/460 Volt Belt Drive 3 Phase RVI6019-X
"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

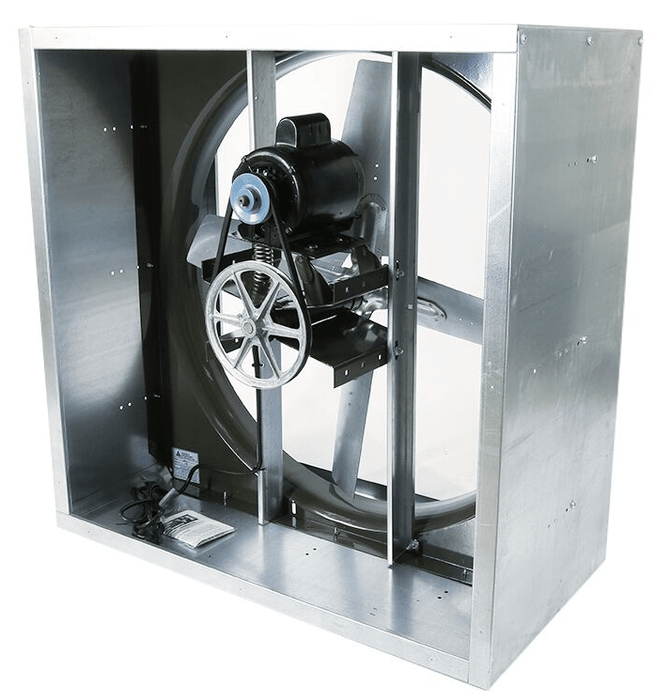

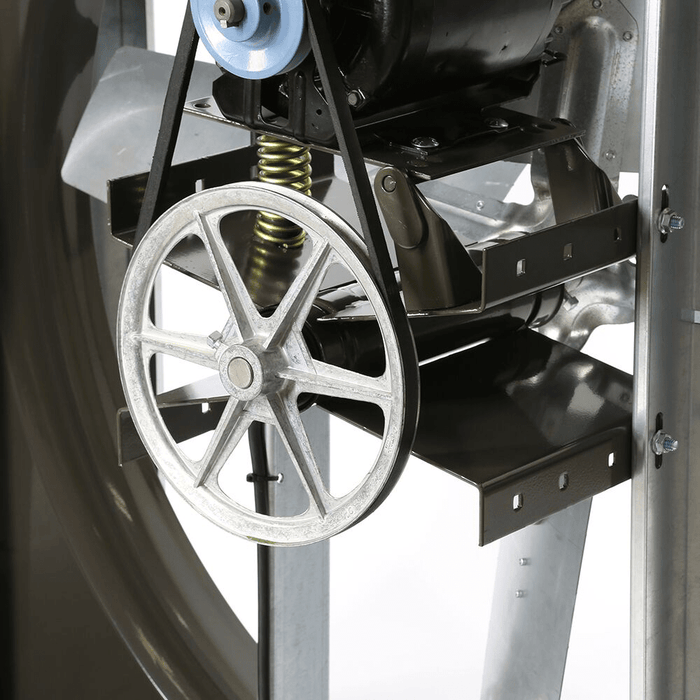

Triangle’s Exclusive X-Wing Belt Tensioner
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.
VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460 / 3 from factory.
**NOTE: When purchasing intake shutters, they are designed to be opened BEFORE turning the fan on.
DIMENSIONS:
A: 68-7/8"
B: 68-7/8"
C: 30"
Specification:
- Model No.: RVI6019-X
- Voltage:230 / 460
- Warehouse:Arkansas
- Made In U.S.A.:Yes
- Type:Supply Air
- Blade Material:Steel
- Blade Size (Inches):60
- No. of Blades:4
- CFM High:43100
- Dimension Inches:Width: 68-7/8" Depth: 30" Height: 68-7/8"
- Hertz:60
- Drive Type:Belt
- Horsepower:5
- Limited Warranty:1 Year Limited
- Motor Type:ODPRPM
- High:650
- Phase:3
- Speed(s):1
- Weight lbs.:450
