SPEEDALERT 24 RADAR MESSAGE SIGN
• SpeedAlert 24 (SA24): 24″ x 60″ full matrix
• Folds to fit in police cruiser trunk, SUV. 43lbs
• Size, weight without battery:
о Open: 28″ x 60″ x 15/8″
о Folded Dimensions: 28″ x 30″ x 3¼″
• Full matrix display
• Universal mounting system: attach to pole, trailer
or vehicle hitch mount
• Integral camera for awareness and alert triggered
images 640x480 daylight images
• Internal K band radar with adjustable sensitivity
• Power saving circuitry and automatic dimming for
ambient light conditions with adjustable dimming
range and manual display brightness override
• Meets MUTCD specifications

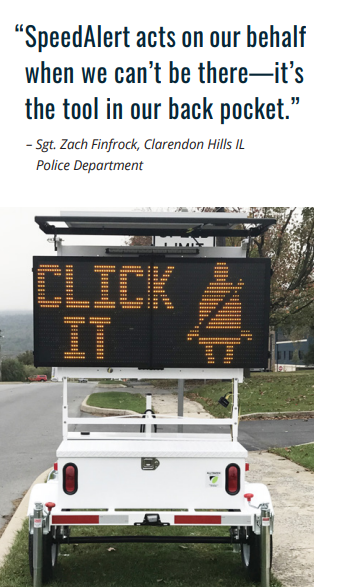

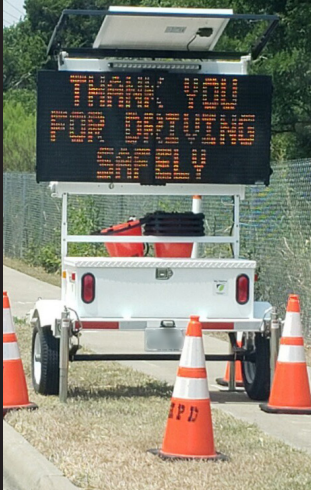

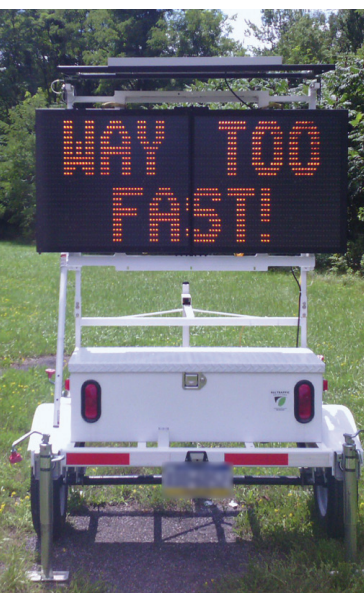

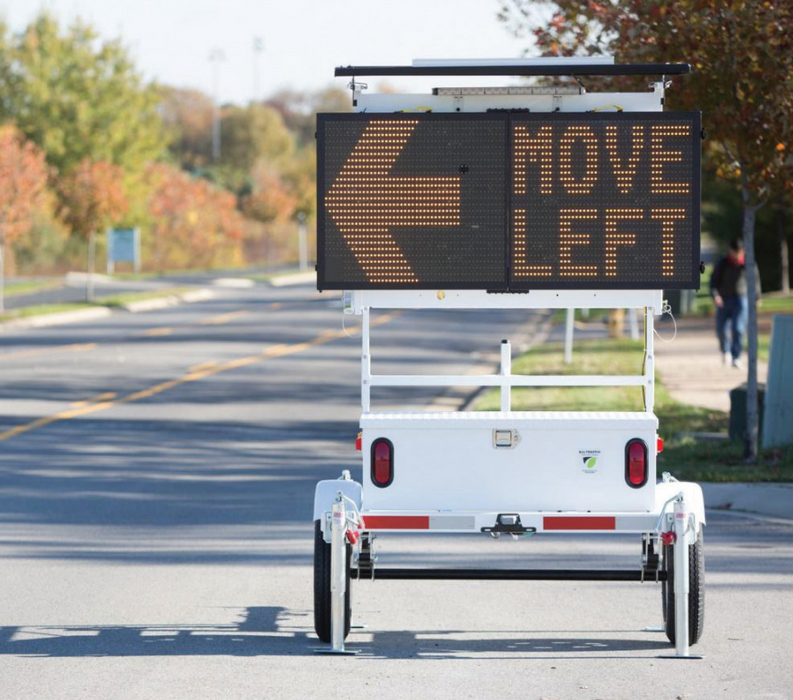

ATS 5 TRAILER Features
• 620 Ibs with 225Ah battery capacity and SpeedAlert/
instAlert 18
• 760 Ibs with 450Ah battery capacity SpeedAlert/
InstAlert 24
о Add 130 Ibs for additional battery pair (145 lbs for
AGM)
о Add 60 Ibs for 120W solar panel
о Add 40 Ibs for 65W solar panel
• Tongue weight: 20 lbs
• Dimensions: 61.5 inches long x 62.5 inches wide x 64
inches high (stowed)
• Simple manual lever lift system for one-person setup
• Removable tongue for 2-inch ball, lockable
• Storage for tongue and lift bar in locked battery
compartment
• 16 ga. steel locking battery compartment with vented
battery chamber, charger/accessories chamber and
1/8-inch aluminum diamond plate lid
• Continuous-weld steel frame, white marine grade
powder coat finish
• Wheels: 12 inches, five-bolt steel rims with 4.5-inch
bolt circle
• Replaceable steel fenders, weight supporting
• Locking wheel lug bolts, one per wheel, with removal tool
• Axle: 2000-lb leaf spring
• Ground Clearance: 9.75 inches under axle, 19 inches
under chassis
• Jacks: 4, retractable crank type, fully adjustable at
each corner, 1500-lb capacity each
• Recessed tail lights and DoT-approved lighting
• Safety chains, 30 inches with hooks
• DoT-approved red/white reflective tape
• License plate holder with light
Power
• 12 VDC system, standard four pin wiring plug
• 225Ah or 450Ah batteries, (2) 6VDC batteries in series,
deep cycle marine (130 lbs per pair, two pair max)
• 20A time delay fuse on battery supply
• 120W solar assist with 10A solar controller to prevent
overcharging, other solar wattages available
• Solar panels charge while sign stowed or deployed
• 10A 120VAC automatic charger with externally
accessible AC connection
• Switch to control power to sign
