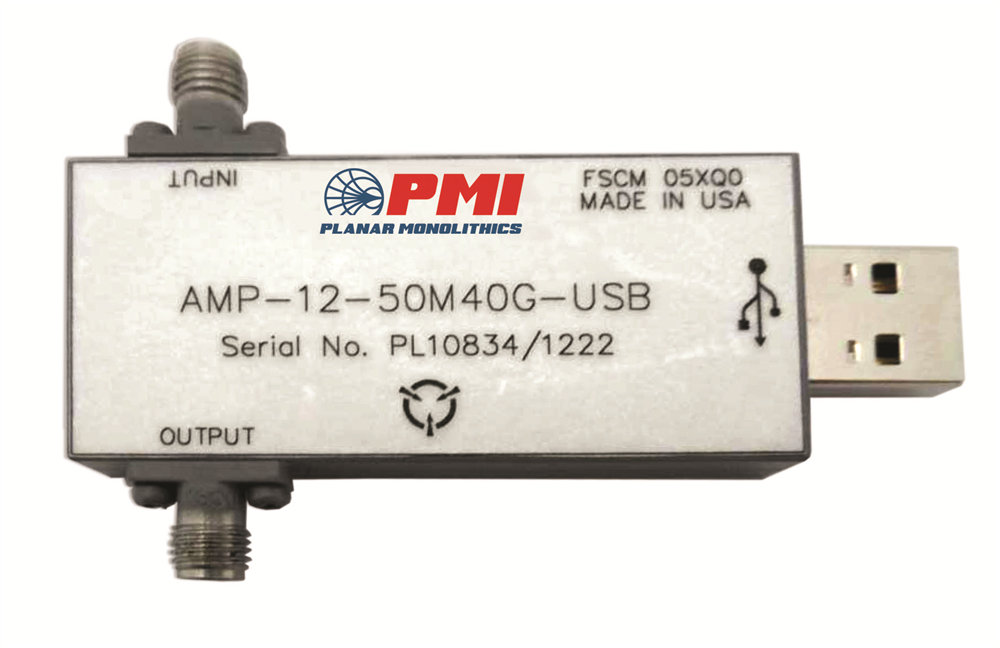

USB RF Amplifier, 0.05–40 GHz, 12 dB Gain

The AMP-12-50M40G-USB is a compact USB-powered broadband RF amplifier operating from 0.05 to 40 GHz with 12 dB typical gain. Designed for RF, microwave, and mmWave test applications, it provides reliable signal amplification in a small form factor without requiring an external power supply.

Frequency Range: 0.05 to 40 GHz
Gain: 12 dB Typical
Gain Flatness: ±2.5 dB Typical
Noise Figure: 4.5 dB Typ up to 20 GHz
Noise Figure: 5.5 dB Typ up to 40 GHz
Output Power (P1dB): 10 dBm Typical
VSWR: 2.3:1 Typical
Powered Through USB 2.0
No External Power Supply Required
Power Connector: USB Type-A
RF Connectors: 2.92 mm Female
Size: 2.25" x 1.0" x 0.33"
Finish: Painted Blue
Plug-and-Play USB Operation
ECCN: EAR99
