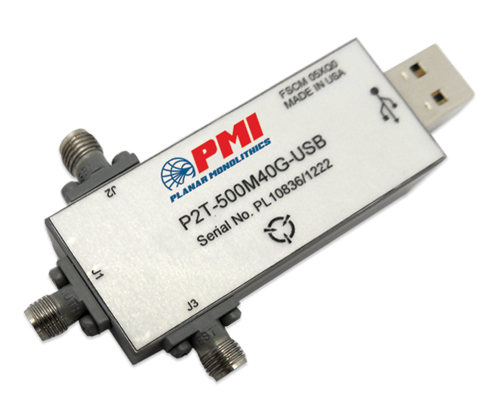

USB RF SPDT Switch, 0.5–40 GHz

USB RF SPDT Switch, 0.5–40 GHz

The P2T-500M40G-USB is a compact USB-controlled absorptive SPDT RF switch operating from 0.5 to 40 GHz. Designed for automated RF, microwave, and mmWave test systems, it provides high isolation, low insertion loss, and simple USB 2.0 control without requiring an external power supply.

  • Switch Type: SPDT Absorptive
  • Frequency Range: 0.5 to 40 GHz
  • Isolation: 60 dB Minimum
  • Insertion Loss: 6 dB Maximum
  • Operating Input Power: 20 dBm
  • Input Power: 23 dBm CW Max
  • Survival Power: 1 W Peak, 1 µs
  • VSWR: 2.5:1 Typical
  • Control & Power: USB 2.0 Type-A
  • No External Power Supply Required
  • Connectors: 2.92 mm Female
  • Size: 2.25" x 1.0" x 0.33"
  • Operating Temperature: -40 °C to +85 °C
  • Storage Temperature: -55 °C to +125 °C
  • OS Compatibility: Windows XP through Windows 11
  • Features: High Isolation, Low Insertion Loss, Ultra-Broadband Operation, USB Controlled
  • ECCN: EAR99
