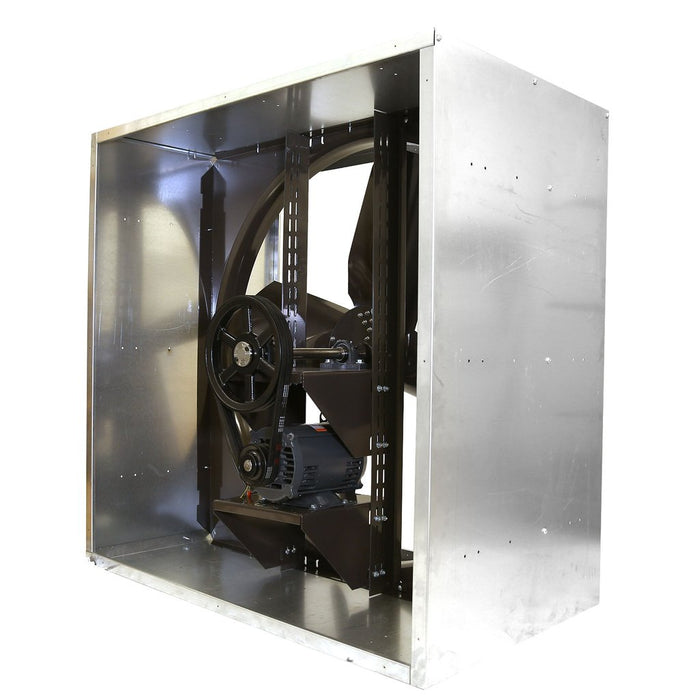

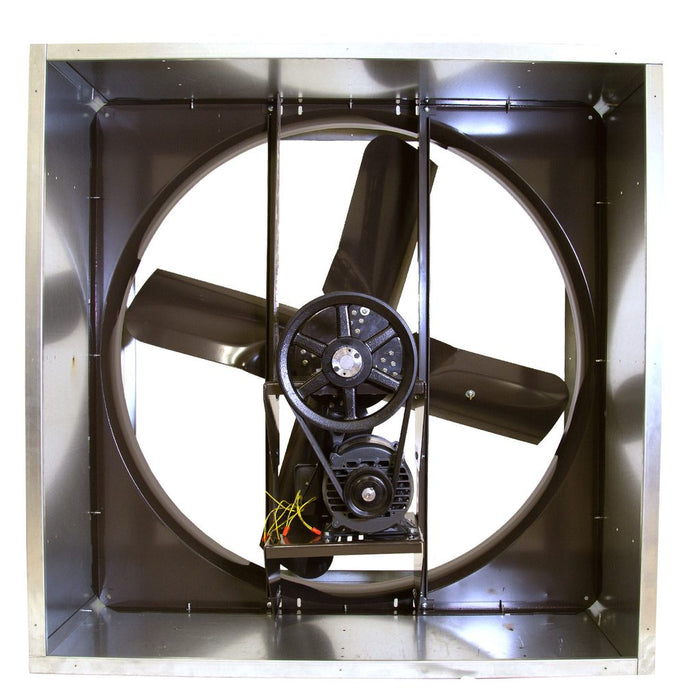

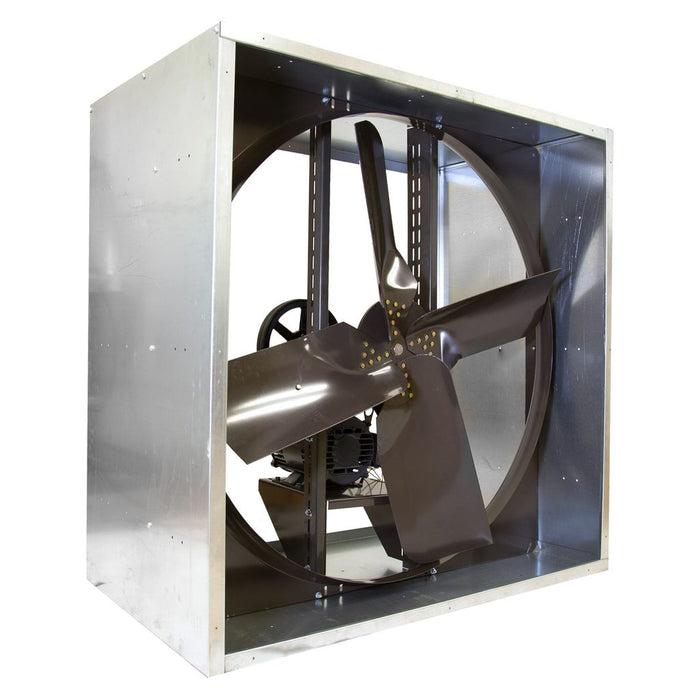

VI Cabinet Exhaust Fan Totally Enclosed 54 inch 25500 CFM 115/230 Volt Belt Drive VI5417T-U


"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.





Triangle’s Exclusive “X-Wing” Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 HP have the standard stationary motor and bearing mounts.

VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460 / 3 from factory.


Dimensional Data:

A = 62-7/8"
B = 62-7/8"
C = 30"


  • Model No.: VI5417T-U
  • Voltage:115 / 230
  • Warehouse:Arkansas
  • Made In U.S.A.:Yes
  • Type:Exhaust
  • Amps:10.2 / 20.4
  • Blade Material:Steel
  • Blade Size (Inches):54
  • No. of Blades:4
  • CFM High:25500
  • Decibels (dBA):30Dimension Inches:Width: 62-7/8" Depth: " Height: 62-7/8"
  • Drive Type:Belt
  • Horsepower:2
  • Limited Warranty:1 Year Limited
  • Motor Type:Totally Enclosed
  • RPM High:615
  • Phase:1
  • Speed(s):1
  • Weight lbs.:358

Call for Price
