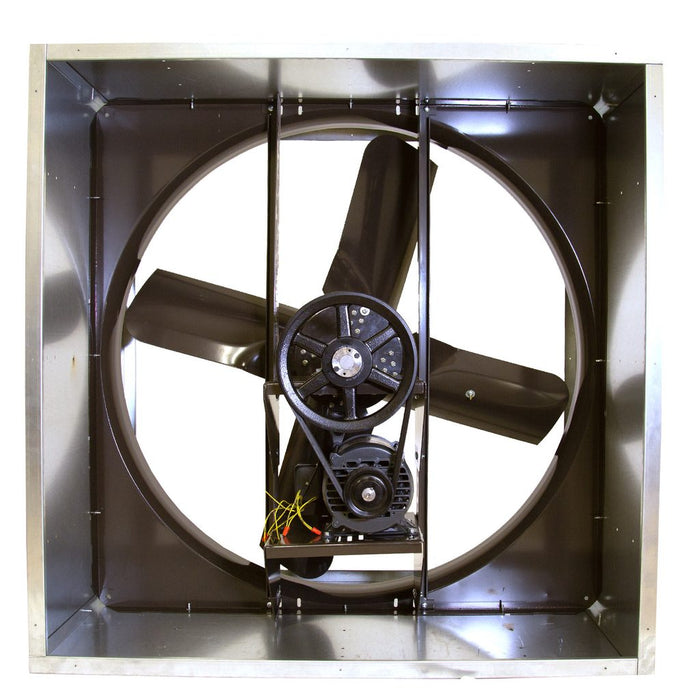

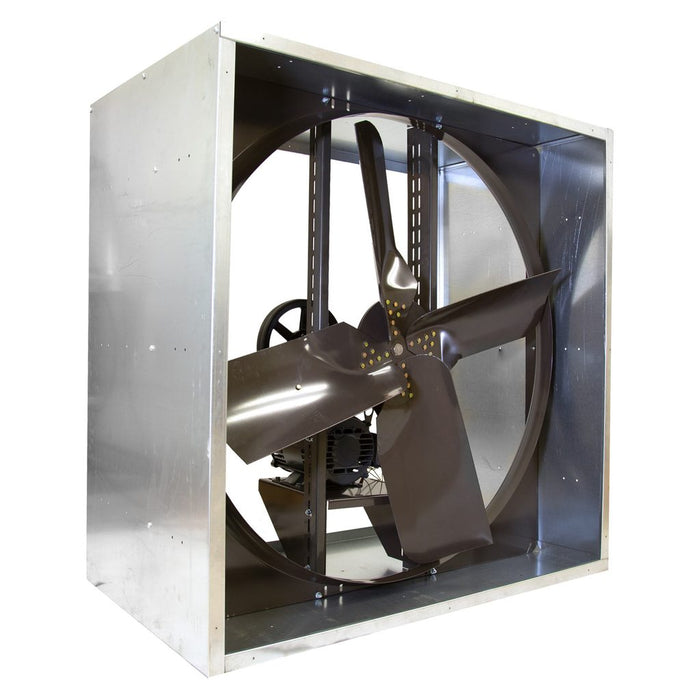

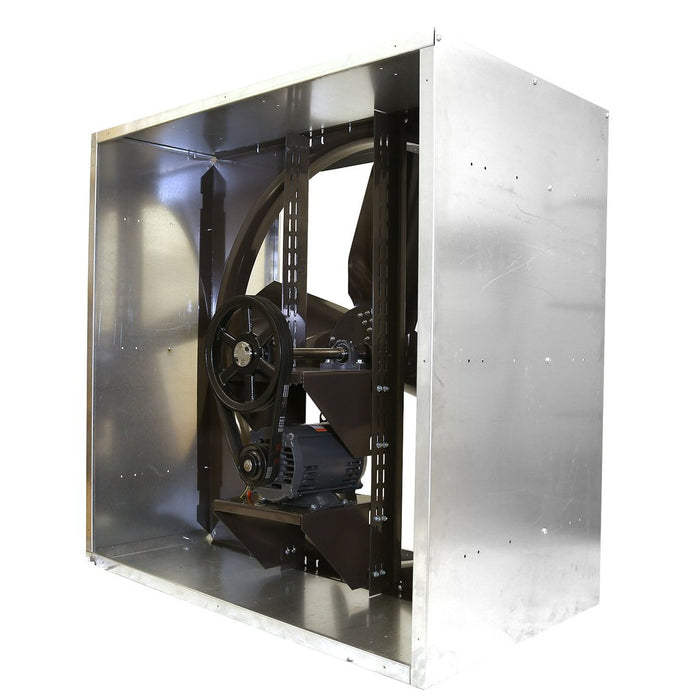

VI Cabinet Exhaust Fan Totally Enclosed 60 inch 30800 CFM 230/460 Volt Belt Drive 3 Phase VI6017T-X
"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 HP to 5 HP (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
Triangle’s Exclusive “X-Wing” Belt Tensioner
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 HP have the standard stationary motor and bearing mounts.
VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460 / 3 from factory.
Dimensional Data:
A = 68-7/8"
B = 68-7/8"
C = 30"
Specification:
- Model No.: VI6017T-X
- Voltage:230 / 460
- Warehouse:Arkansas
- Made In U.S.A.:Yes
- Type:Exhaust
- Amps:6.4 / 3.2
- Blade Material:Steel
- Blade Size (Inches):60
- No. of Blades:4
- CFM High:30800
- Dimension Inches:Width: 68-7/8" Depth: 30" Height: 68-7/8"
- Drive Type:Belt
- Horsepower:2
- Limited Warranty:1 Year Limited
- Motor Type:Totally Enclosed
- RPM High:611
- Phase:3
- Speed(s):1
- Weight lbs.:420
