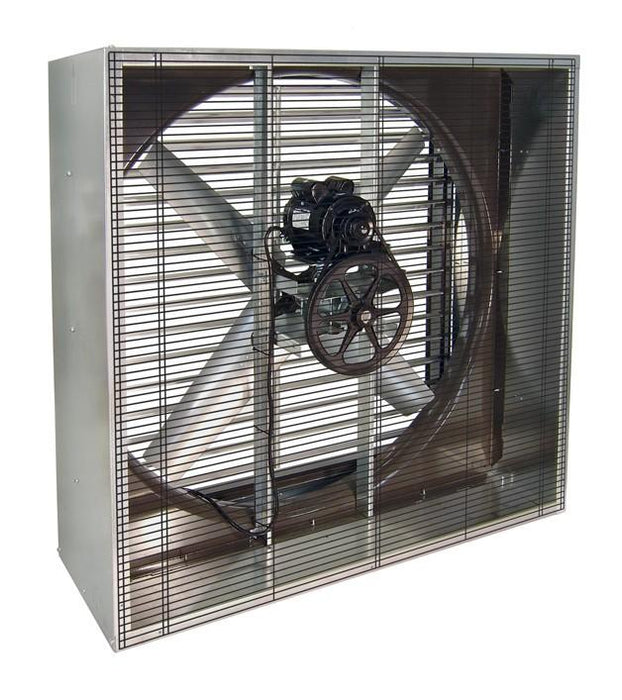

VIK Cabinet Exhaust Fan w/ Shutters 54 inch 37300 CFM Belt Drive 3 Phase VIK5419-X


"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish. "VIK" Series fans are a combination of the VI series fan, a heavy duty intake screen guard and an automatic exhaust shutter for convenient installation. The safety guards and guards meet OSHA requirements.





Triangle’s Exclusive “X-Wing” Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.

NOTE: This product is non-returnable and cannot be cancelled.


Dimensional Data:

A = 62-7/8"
B = 62-7/8"
C = 34"


  • Model No.: VIK5419-X
  • Voltage:230 / 460
  • Warehouse:Arkansas
  • Type:Exhaust
  • Amps:13.8 / 6.9
  • Blade Material:Steel
  • Blade Size (Inches):54
  • No. of Blades:4
  • CFM High:37300
  • Dimension
  • Inches:Width: 62-7/8" Depth: 34" Height: 62-7/8"
  • Drive Type:Belt
  • Horsepower:5
  • Limited Warranty:1 Year Limited
  • Motor Type:ODP
  • Phase:3
  • Speed(s):1
  • Weight lbs.:490
