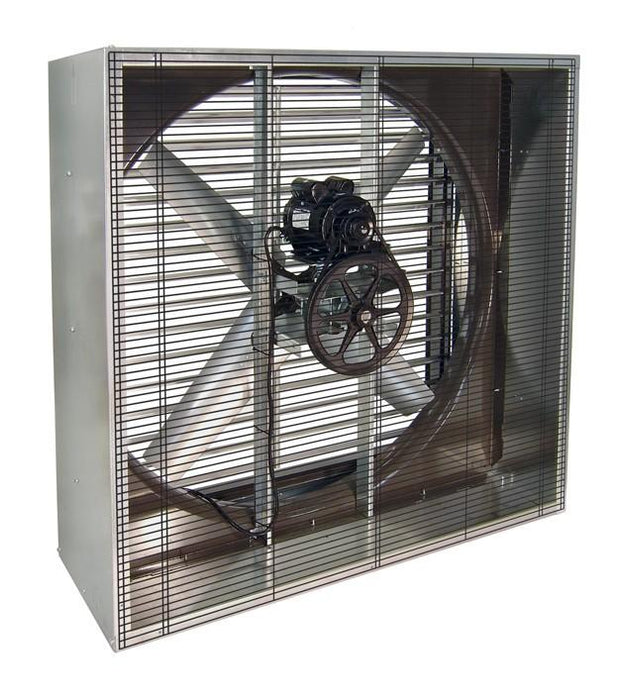

VIK Cabinet Exhaust Fan w/ Shutters Totally Enclosed 54 inch 29800 CFM Belt Drive 3 Phase VIK5418T-X
"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish. "VIK" Series fans are a combination of the VI series fan, a heavy duty intake screen guard and an automatic exhaust shutter for convenient installation. The safety guards and guards meet OSHA requirements.
Triangle’s Exclusive “X-Wing” Belt Tensioner
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.
NOTE: This product is non-returnable and cannot be cancelled.
A = 62-7/8"
B = 62-7/8"
C = 34"
- Model No.: VIK5418T-X
- Voltage:230 / 460
- Blade Material:Steel
- Blade Size (Inches):54
- No. of Blades:4
- CFM High:29800
- Dimension Inches:Width: 62-7/8" Depth: 34" Height: 62-7/8"
- Drive Type:Belt
- Limited Warranty:1 Year Limited
- Motor Type:Totally Enclosed
- Weight lbs.:470
