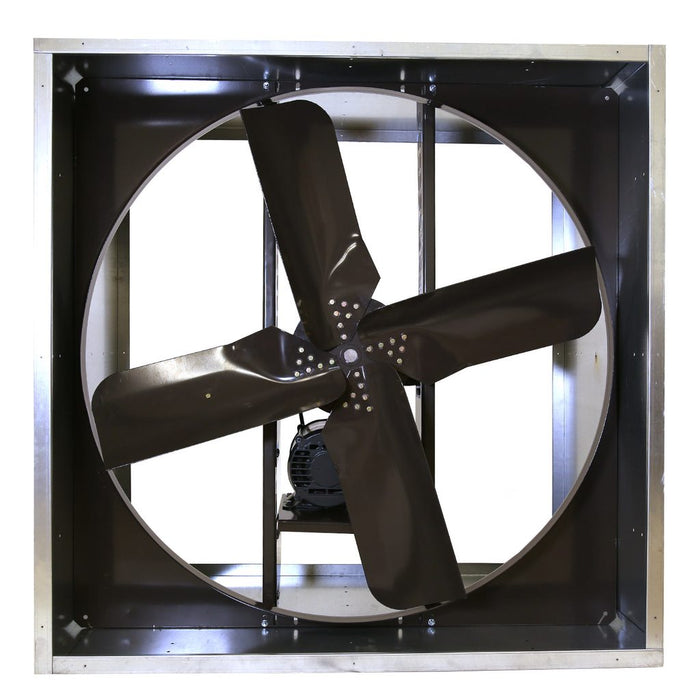

VIK Explosion Proof Exhaust Fan 54 inch 25500 CFM 3 Phase 230/460 Volt Belt Drive VIK5417HL-X


"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.

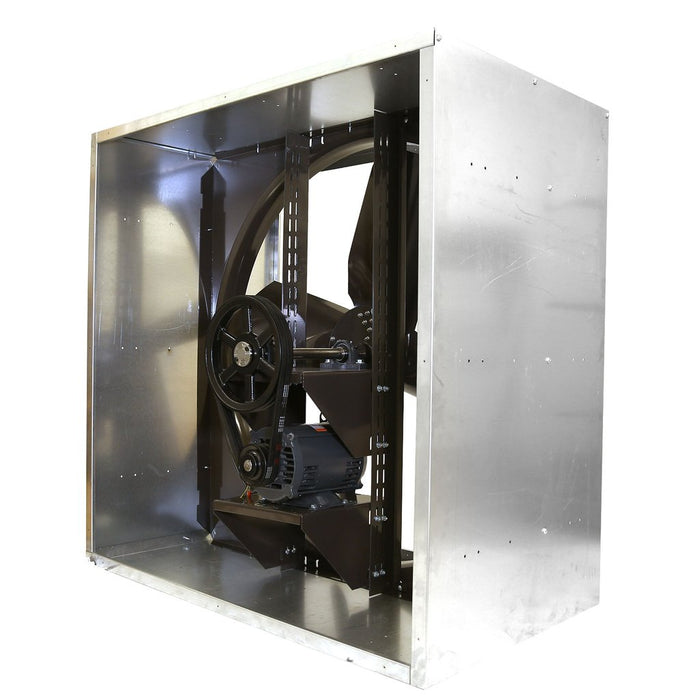

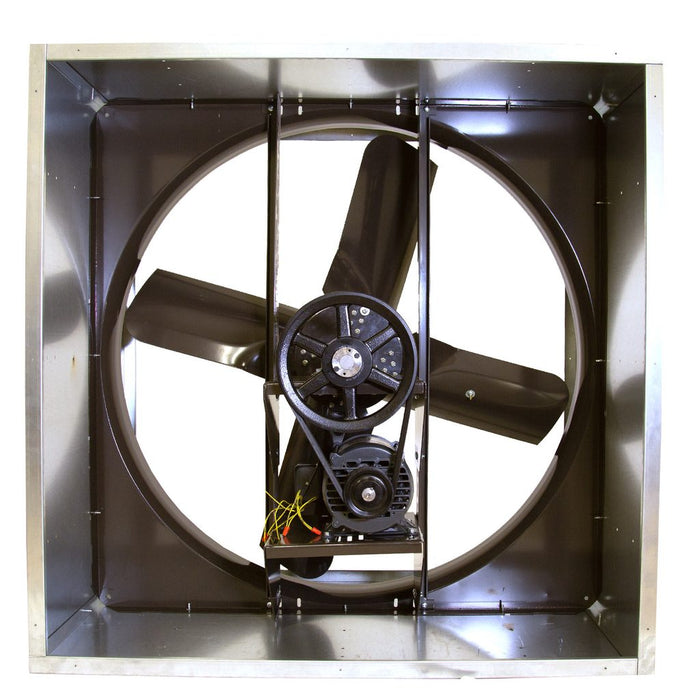

Triangle’s Exclusive “X-Wing” Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.

* Explosion proof motors are Class I, Div. 1, Group D, and Class II, Div. 1, Groups F & G.
Note: VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460/3 from factory.

* The perfect exhaust fan for paint booths.

NOTE: This product is non-returnable and cannot be cancelled.


Dimensional Data:

A & B = 62 7/8" SQ
C = 20" (HL Fan - add 10 inches to depth)


  • Model No.: VI5419HL-X
  • Voltage:230 / 460
  • Warehouse:Arkansas
  • Made In U.S.A.:Yes
  • Type:Explosion
  • ProofAmps:13.8 / 6.9
  • Blade Material:Aluminum
  • Blade Size (Inches):54
  • No. of Blades:4CFM
  • High:37300
  • Drive Type:Belt
  • Horsepower:5
  • Limited Warranty:1 Year
  • LimitedMotor Type:Explosion Proof
  • RPM High:650Phase:3
  • Speed(s):1
  • Weight lbs.:351
