Water Pressure Data Logger for Pipeline Monitoring
Description
The DruckLogger DL4 Water Pressure Data Logger is a professional pressure monitoring instrument designed for water utilities, municipalities, pipeline contractors, and distribution network operators. Engineered for long-term pressure monitoring, leak investigations, and hydraulic analysis, it accurately records water system pressure up to 363 psi (25 bar) with industry-leading ±0.1% full-scale accuracy.

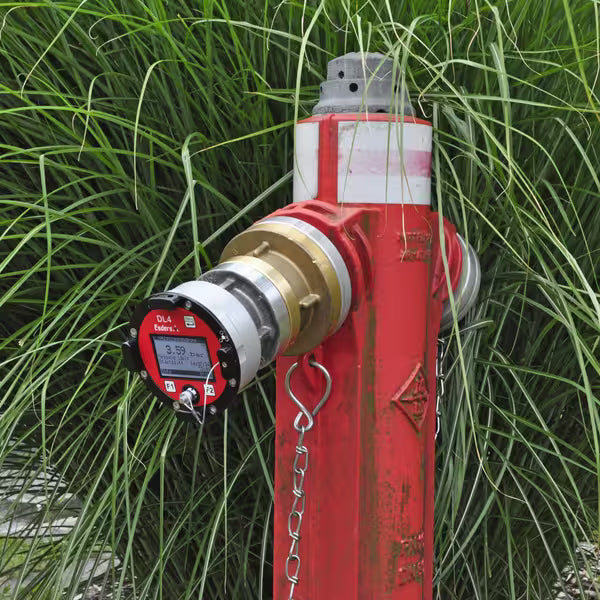

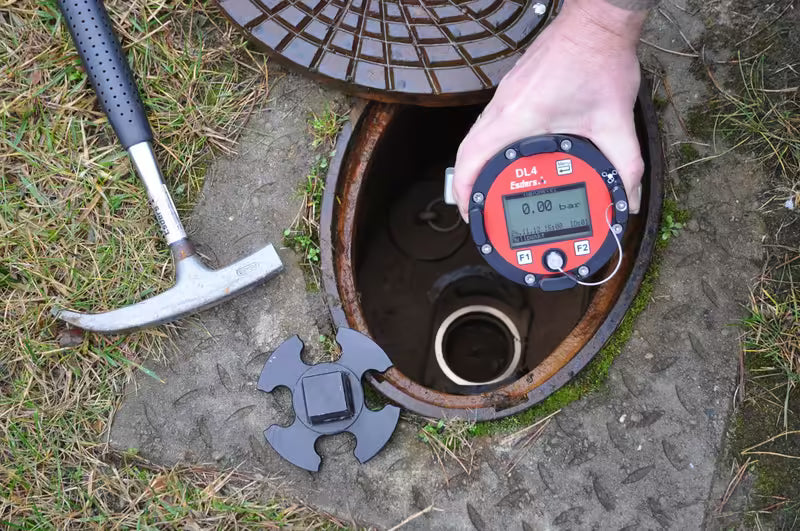

Designed specifically for field use, the DL4 mounts directly onto underground or pillar hydrants without external hoses or cables. Its rugged IP68 waterproof aluminum housing, magnetic control interface, long-life rechargeable battery, and onboard data logging make it ideal for monitoring pressure fluctuations, validating network performance, and troubleshooting water distribution systems.
Ideal Applications
- Water distribution networks
- Municipal water utilities
- Pressure monitoring
- Pipeline commissioning
- Leak investigations
- Hydrant pressure testing
- Hydraulic analysis
- Water infrastructure maintenance
Key Features
- Pressure monitoring up to 363 psi (25 bar)
- High accuracy (±0.1% full scale)
- Direct hydrant installation
- IP68 waterproof aluminum housing

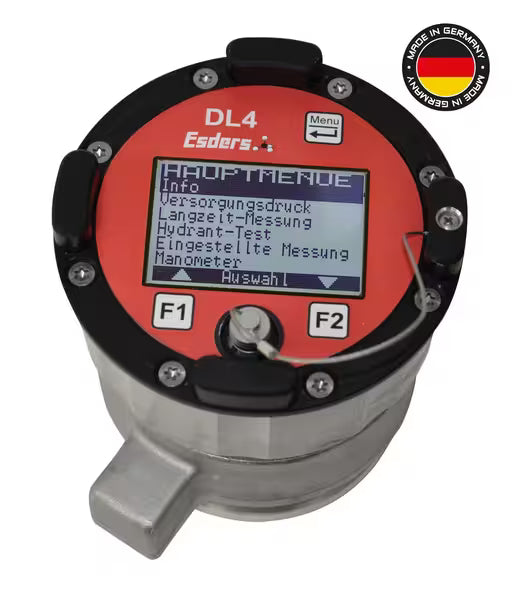

- Large backlit LCD display
- Magnetic controls (sealed design)
- Rechargeable lithium-ion battery
- Up to 6 months battery life
- USB data download
- PC software for programming and reporting
- Made in Germany
Technical Specifications
| Specification | Value |
|---|---|
| Application | Water Pressure Monitoring |
| Pressure Range | 0–363 psi (0–25 bar) |
| Resolution | 0.07 psi (5 mbar) |
| Accuracy | ±0.1% Full Scale |
| Display | 128 × 64 Backlit LCD |
| Protection Rating | IP68 |
| Battery | Rechargeable Lithium-Ion |
| Battery Life | Up to 6 months |
| Operating Temperature | 5°F–122°F (-15°C to 50°C) |
| Interface | USB |
| Mounting | Underground Hydrant or Storz-C Hydrant |
| Country of Origin | Germany |
| HS Code | 9026.20 |
| SKU | MBT-561010 |
