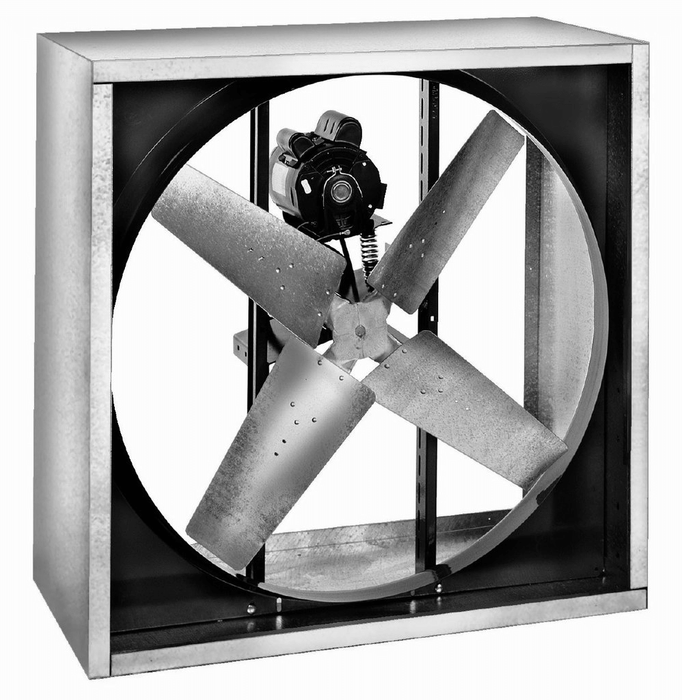

RVI Cabinet Supply Fan Totally Enclosed 60 inch 34700 CFM 230/460 Volt Belt Drive 3 Phase RVI6018T-X

$7,203.00

"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.









Triangle’s Exclusive X-Wing Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.

VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460 / 3 from factory.

**NOTE: When purchasing intake shutters, they are designed to be opened BEFORE turning the fan on.

Dimensional Data:

A: 68-7/8"
B: 68-7/8"
C: 30"

Specification:

  • Model No.: RVI6018T-X
  • Voltage:230 / 460
  • Warehouse:Arkansas
  • Made In U.S.A.:Yes
  • Type:Supply Air
  • Blade Material:Steel
  • Blade Size (Inches):60
  • No. of Blades:4
  • CFM High:34700
  • Construction:Steel
  • Dimension Inches:Width: 68-7/8" Depth: 30" Height: 68-7/8"
  • Hertz:60
  • Drive Type:Belt
  • Horsepower:3
  • Limited Warranty:1 Year Limited
  • Motor Type:TE
  • Phase:3
  • Speed(s):1
  • Weight lbs.:445
RVI6018T-X
×

Call for Price
