USB Signal Generator | 50 MHz–40 GHz | SYN0040A-U-MB

USB Signal Generator | 50 MHz–40 GHz | SYN0040A-U-MB

Model: MBT-SYN0040A-U

Compact, USB-controlled RF signal generator covering 50 MHz to 40 GHz for advanced microwave development, laboratory testing, and automated measurement systems.

50 MHz–40 GHz  •  1 Hz resolution  •  Up to +19 dBm output  •  USB-C and API control

Request a Quote Get pricing and lead time
$6,995.00 - $6,995.00
$6,995.00
$6,995.00 - $6,995.00
$6,995.00
Download Datasheet
View full specifications
↓

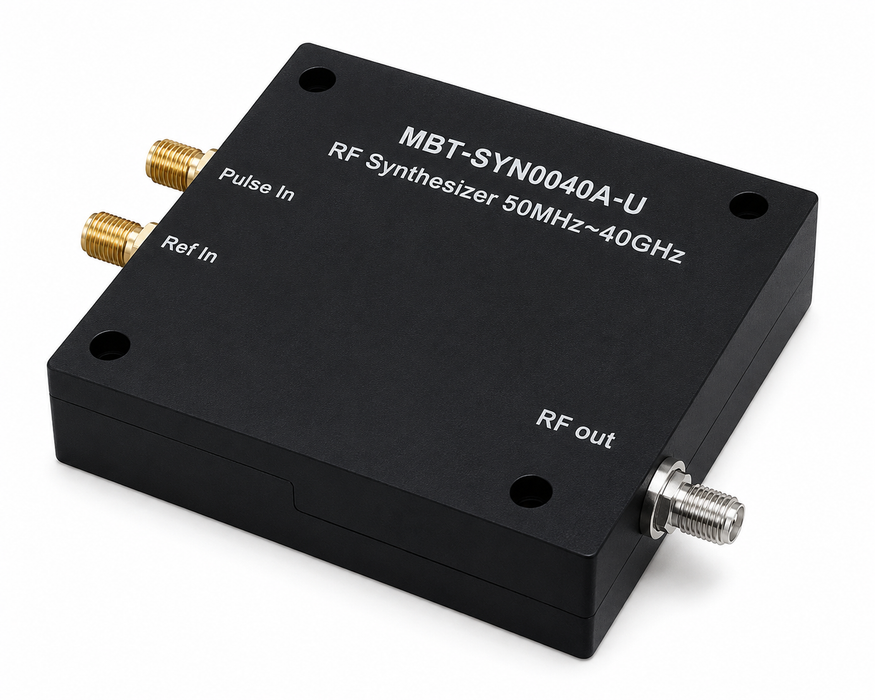

40 GHz USB RF Synthesizer

The SYN0040A-U-MB is a compact, high-performance RF synthesizer designed for advanced microwave and millimeter-wave applications. Its wide frequency coverage, 1 Hz frequency resolution, programmable output power, and low-phase-noise architecture support research, development, production verification, and automated test systems.

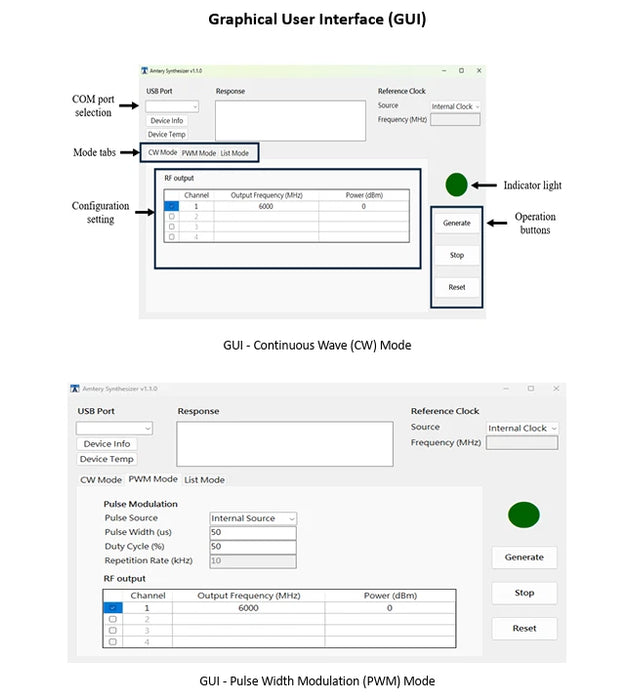

Control the synthesizer through its USB Type-C connection using the graphical user interface (GUI), or integrate it into an automated test system through the API. Features include internal and external pulse modulation, frequency and power list modes, external reference clock input, and fast switching for local oscillator (LO) and measurement applications.

Product Video

Technical Specifications

RF Performance

Frequency range
50 MHz to 40 GHz
Frequency resolution
1 Hz
Maximum output power
Up to +19 dBm (frequency dependent)
Minimum output power
−40 dBm (to 17 GHz); −25 dBm (17–40 GHz)
Power resolution
0.5 dB
Frequency stability
±0.5 ppm (typical)
Phase noise
Low-phase-noise architecture

Modulation & Operation

Pulse modulation
Internal and external
Pulse rise/fall time
30 ns
Frequency & power lists
Supported
Operating modes
CW, pulse modulation, frequency list, power list
Reference clock input
10–110 MHz

Connectivity & Hardware

Model
SYN0040A-U-MB
RF output connector
2.92 mm female
Pulse input
SMA female
Reference input
SMA female
Control interface
USB 3.2 Gen 1 Type-C

Ideal Applications

  • 5G, Ka-band, and wireless infrastructure development
  • RF up-conversion and down-conversion
  • Automated test equipment (ATE)
  • Production verification and manufacturing test
  • University and research laboratories
  • General RF and microwave testing
  • Portable local oscillator (LO) applications
