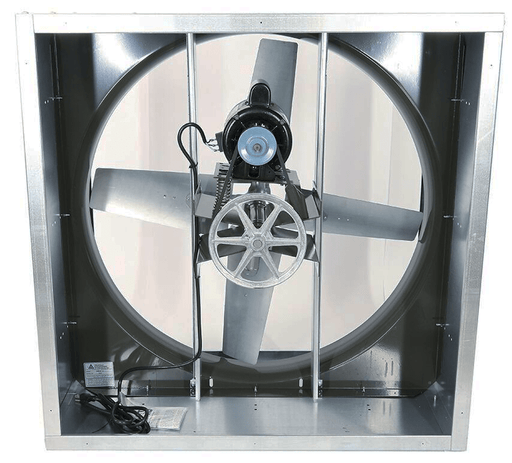

VI Explosion Proof Exhaust Fan 60 inch 30800 CFM Belt Drive 3 Phase VI6017HL-X

$9,554.00

"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.









Triangle’s Exclusive “X-Wing” Belt Tensioner

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.

* Explosion proof motors are Class I, Div. 1, Group D, and Class II, Div. 1, Groups F & G.
Note: VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460/3 from factory.

* The perfect exhaust fan for paint booths.

NOTE: This product is non-returnable and cannot be cancelled.



Dimensional Data:

A & B = 68 7/8" SQ
C = 20" (HL Fan - add 10 inches to depth)

Specification:

  • Model No.: VI6017HL-X
  • Voltage:460
  • Warehouse:Arkansas
  • Made In U.S.A.:Yes
  • Type:Explosion
  • ProofAmps:6.4 / 3.2
  • Blade Material:Aluminum
  • Blade Size (Inches):60
  • No. of Blades:4
  • CFM High:30800
  • Drive Type:Belt
  • Horsepower:2
  • Limited Warranty:1 Year Limited
  • Motor Type:Explosion Proof
  • RPM High:611
  • Phase:3
  • Speed(s):1
  • Weight lbs.:410
VI6017HL-X
